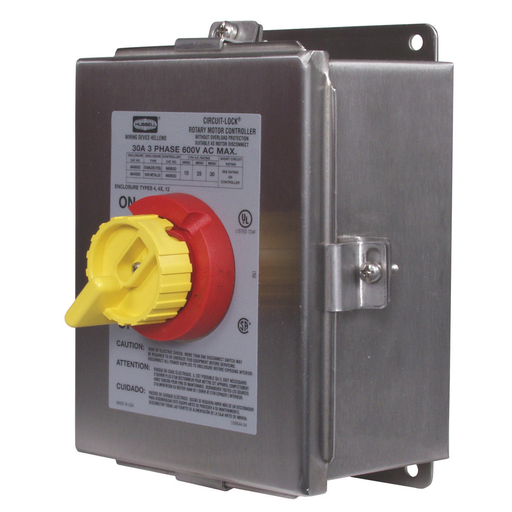

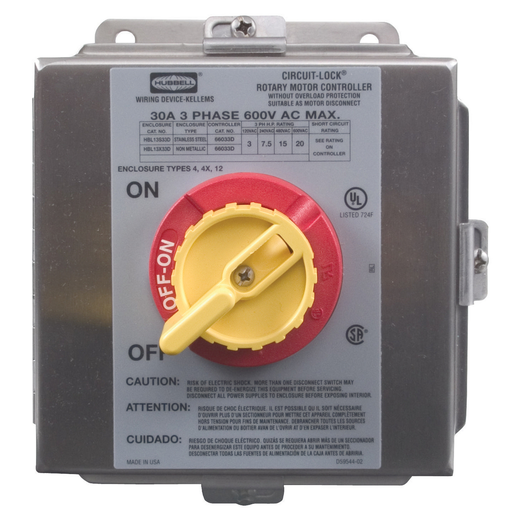

Hubbell HBL13S33D30A 600V 3P RTRY DISC SW 4X SS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL13S33D | Codale Part # 2639032
$998.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Rotary Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Stainless, NEMA 4X Enclosure with Switch

Technical Information

Amperage
30 Amp
Applications
Rotary
Connection Type
Pressure Screw Terminal
Current
30 Amp
Enclosure Rating
4X
Enclosure Type
NEMA 4X
Load Rating
18000 W
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
1 1/2 in
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Style
Standard Duty
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Enclosed, Standard, Rotary
Voltage
600 Volt
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202723
Product Series
Non-Fused
Product UPC
78358520272
Weight
5.8 lb

Dimensions

Height
4 Inch
Length
6-3/4 Inch
Width
6.96 in

Certifications and Compliance

Country of Origin
USA
Features
  • Optional Side Guard for close wall applications
  • Hinged Cover with removable continuous pin
  • Stainless steel enclosure for chemical and corrosion resistant
  • Rotary Operator
