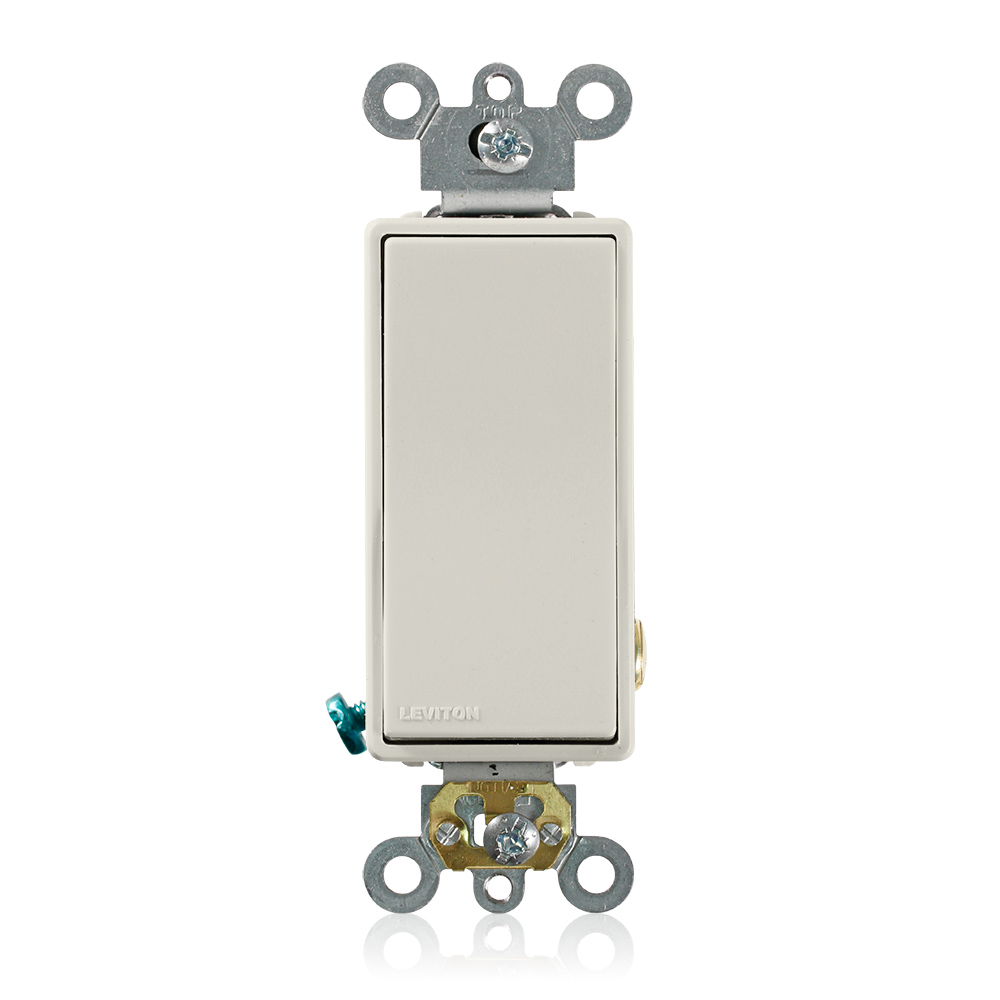

Product image for Leviton 5621-2T 20amp Light Almond Single Pole Commercial Grade Decora Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Leviton 5621-2T 20amp Light Almond Single Pole Commercial Grade Decora Switch

Manufacturer: Leviton | Catalog # 5621-2T | Codale Part # 2641245
$21.31/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20A 120/277V Decora Plus Rocker Single-Pole AC Quiet Switch, Commercial Grade, Back and Side Wired, Grounding, Light Almond

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
For Commercial Application
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
20 A at 120/277 VAC
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic/Steel
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Number of Positions
1
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
Tc Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees F
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Grounded Decor
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477271001
Color
Light Almond
Environmental Conditions
Flammability (Rated V-2 per UL94)
Product UPC
07847727100
Weight
0.2160 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Color Variations
  • Brown
