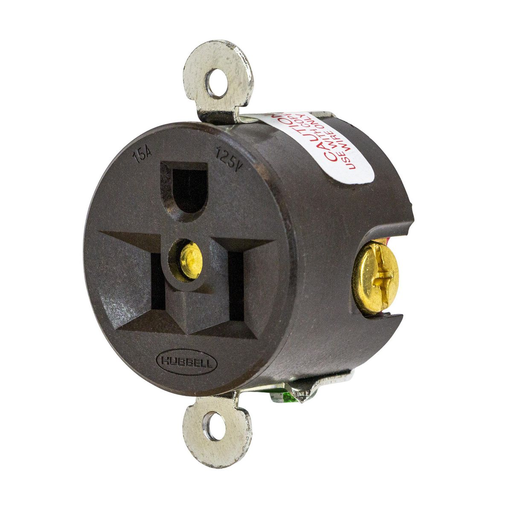

Hubbell HBL5258 Brown 15A 125V Single Panel-Mount Receptacle. Heavy Duty Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5258 | Codale Part # 26715
$26.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Panel Mount Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack, Short Strap.

Technical Information

Amperage
15 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
14-12 AWG
Connection Type
Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Panel
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. WC596,File E2186,NEMA® WD-6,No. 42,UL
Style
Finder Groove Face
Tc Connection
Side Wired Only
Type
Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013848
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
78358501384
Weight
0.15 lb

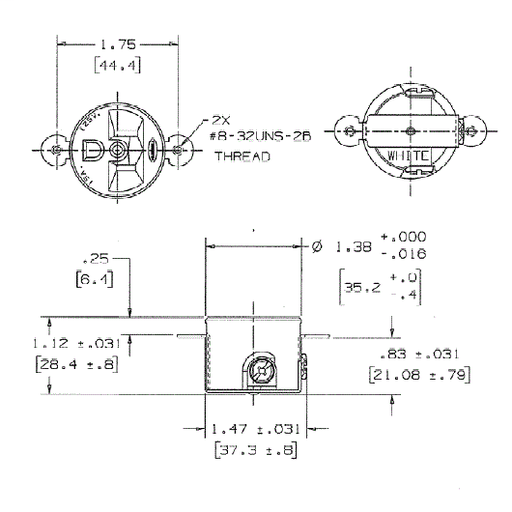

Dimensions

Height
1.12 Inch
Length
1-3/4 Inch
Width
1.38 in

Certifications and Compliance

Country of Origin
USA
Features
  • Slender/compact design
  • Triple wipe contacts
  • Panel mount
  • Panel Mount
