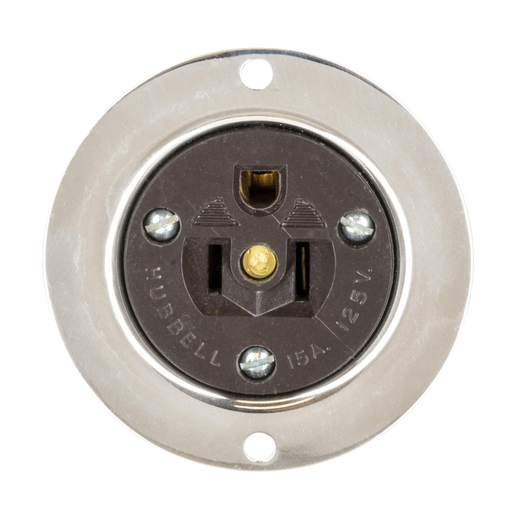

Product image for Hubbell HBL5279Flanged-Receptacle, 15A 125V, 5-15P, SS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 5
Email

Hubbell HBL5279Flanged-Receptacle, 15A 125V, 5-15P, SS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5279 | Codale Part # 26727
$171.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Inlets, Flanged, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Stainless, Single Pack,Brown

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Applications
Base Material
Phenolic
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Heavy-Duty Specification
Horsepower
0.50 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
#8-32 Brass,Steel, Zinc Plated
Size
Standard
Standard
C22.2,CSA,File E2186,NEMA® WD-6,No. 42,UL
Tc Connection
Screw Terminal
Type
Standard
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013367
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501336
Weight
0.25 lb

Dimensions

Height
2.98 Inch
Length
2.98 Inch
Width
2.980 in

Certifications and Compliance

Certifications
C22.2,Certified To CSA,File E2186,Meets NEMA WD-6 Requirements Listed To UL Standard 498,No. 42,UL Listed
Country of Origin
USA
Features
  • Stainless steel flange
  • Covered terminal screws
