Hubbell HBL5284 SGL PANEL MT Receptacle, 15A 125V, 5-15R, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5284 | Codale Part # 26731
$33.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Panel Mount Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Panel
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Panel Mount
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585014227
Color
Brown
Environmental Conditions
Indoor Only
Product Series
Extra Heavy Duty
Product UPC
78358501422
Weight
0.2 lb

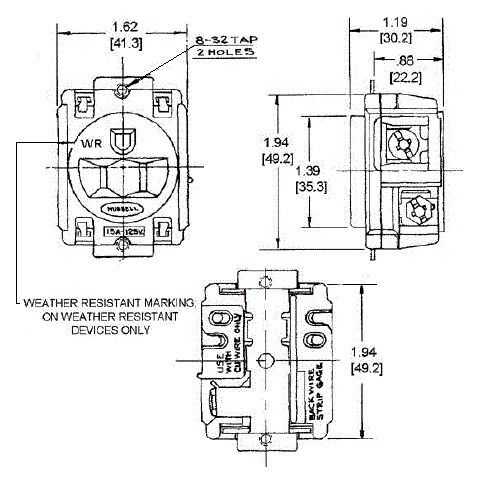

Dimensions

Height
1.19 Inch
Length
1.94 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece brass integral ground strap
  • Unique bypass contact design
  • Panel Mount
