Hubbell HBL5302 15 Amp 277 Volt 2-Pole 3-Wire NEMA 7-15R Brown Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5302 | Codale Part # 26744
$53.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 277V AC, 7-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Applications
Base Material
Phenolic
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Phenolic
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
7-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Standard
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585014241
Color
Brown
Environmental Conditions
Indoor Only
Product Series
Extra Heavy Duty
Product UPC
78358501424
Weight
0.25 lb

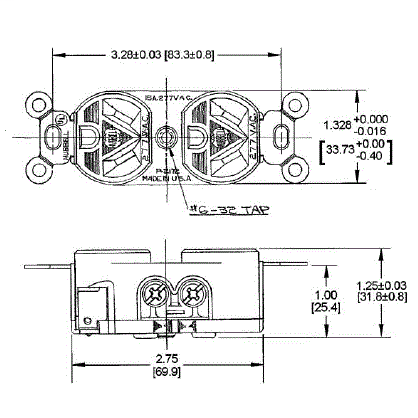

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Finder groove face
  • Auto ground clip
  • Standard
