Hubbell HBL5552B 20 Amp 250 Volt 2-Pole 3-Wire NEMA 2-20R Black Phenolic Straight Blade Device Single Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5552B | Codale Part # 26771
$43.90/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 2-Wire non Grounding, 20A 250V, 2-20R, Black, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty
Conductor Size
14-12 AWG
Connection Type
Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Non-Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
2-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Tc Connection
Push-In and Side Wired
Type
Heavy Duty
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585014364
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501436
Weight
0.2 lb

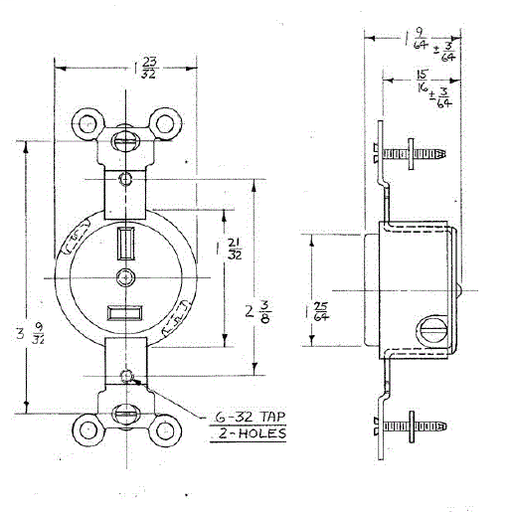

Dimensions

Height
1.14 Inch
Length
3.28 Inch
Width
1.39 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Classic design
  • Self Grounding
