Hubbell HBL6810 20 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-20R Black Phenolic Straight Blade Device Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL6810 | Codale Part # 26815
$58.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 20A 125/250V, 10- 20R, Black, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Non-Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
10-20R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
14-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585014401
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358501440
Weight
0.2 lb

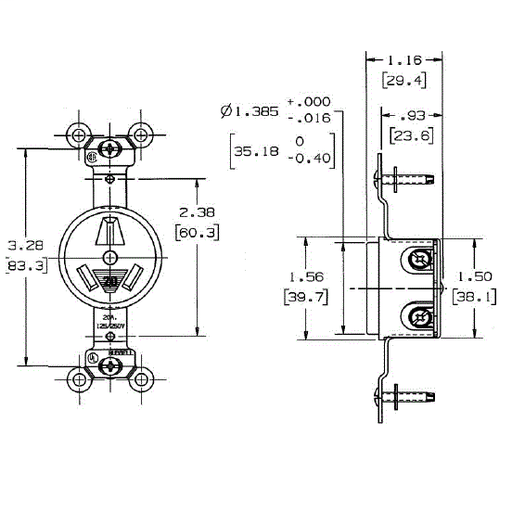

Dimensions

Height
0.97 Inch
Length
3.28 Inch
Width
1.39 in

Certifications and Compliance

Country of Origin
USA
Features
  • Classic design
  • Standard
