Hubbell HBL7940 Receptacle, SURF MT, 3P3W, 50A 125/250V, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7940 | Codale Part # 26933
$106.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Surface Mounted Single, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 50A 125/250V, 10-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
10-4 AWG
Connection Type
Back and Side Wire
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
10-50R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire Non-Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4 lb

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015392
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501539
Weight
0.9 lb

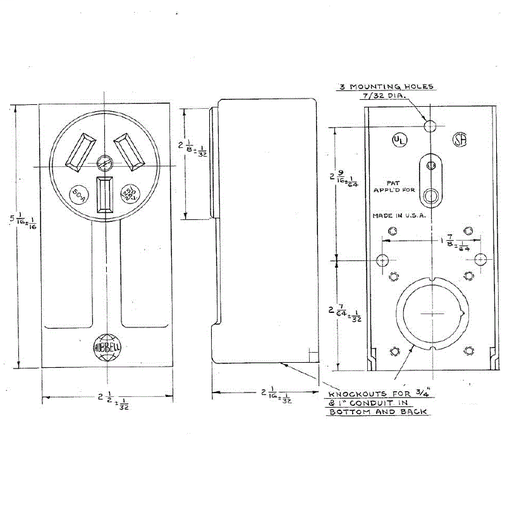

Dimensions

Height
2.06 Inch
Length
5.06 Inch
Width
2.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
