Hubbell HBL20444B 30 Amp 480 Volt 3-Pole 4-Wire Red Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL20444B | Codale Part # 26976
$1,012.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 30A 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Red nylon housing, thermoset interior

Technical Information

Amperage
30 Amp
Applications
For Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw Terminal
Current
30 Amp
Material
Nylon
Number of Conductors
3
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard, Non-Grounding
Voltage
480 Volt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017433
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501743
Weight
1.05 lb

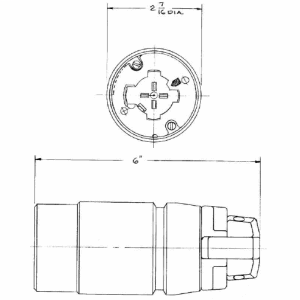

Dimensions

Height
2.44 Inch
Length
6 Inch
Width
2.44 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Standard Product
