Hubbell HBL25414B 30 Amp 600 Volt 4-Pole 5-Wire Black and White Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL25414B | Codale Part # 26997
$1,164.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Black nylon housing, Thermoplastic interior, Non NEMA, Screw Terminal, Black/White.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw Terminal
Current
20 Amp
Material
Composite
Number of Conductors
5
Number of Poles
4-4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Standard, Insulated, Straight, 4-Pole
Voltage
250 Volt
Wire Count
5
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017471
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501747
Weight
1.6 lb

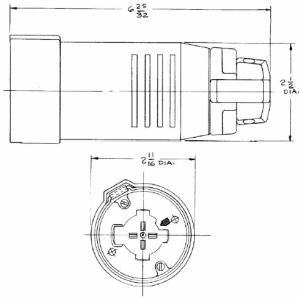

Dimensions

Height
2.69 Inch
Length
6.78 Inch
Width
2.69 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Standard Product
