HCI HBL26516 H/LOCK CONN, 4P5W, 60A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26516 | Codale Part # 27003
$2,718.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Black phenolic interior, Non NEMA, Screw Terminal, Blue thermoplastic sleeve over steel cover

Technical Information

Amperage
60 Amp
Applications
For Heavy Duty Applications
Conductor Size
8-4 AWG
Cord Size
1 - 1.5 in
Current
60 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Steel
Mounting Type
Cord
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Standard
Voltage
600 Volt
Wire Count
5
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbellock®

General Product Info

12-Digit UPC
783585017501
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501750
Weight
2.5 lb

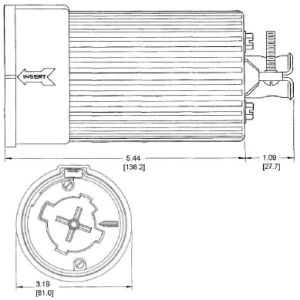

Dimensions

Height
5.44 Inch
Length
3.19 Inch
Width
1.09 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Insulated, color coded metallic housing enhances safety and abuse resistance
  • Standard Product
