Hubbell H320P 20/16A 250V AC IEC Straight Blade Appliance Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # H320P | Codale Part # 27151
$48.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, IEC 320 Devices, Male Plug, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.

Technical Information

Amperage
16 Amp
Applications
International Application
Conductor Size
12 AWG
Cord Type
Portable
Current
16 Amp
Grounding
Yes
Material
Composite
Mounting Type
Cord
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
20A 250V AC-File No. 17337,20A 250V AC-File No. E1706,CSA,UL
Tc Connection
Terminal Screws
Type
Standard
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
16-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585777061
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Gender
Male
Product UPC
78358577706
Weight
0.15 lb

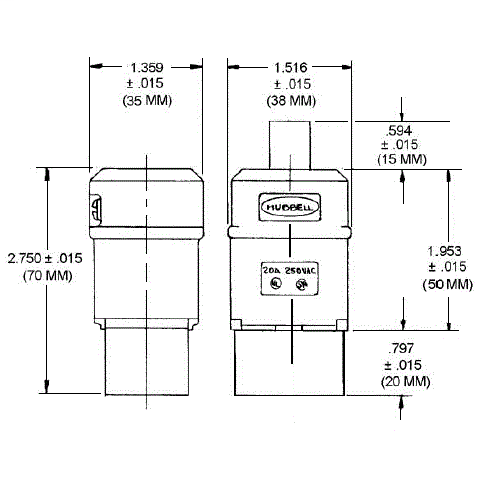

Dimensions

Height
1.36 Inch
Length
2-3/4 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Compatible with IEC320
  • Hinged one piece body design for easy assembly
  • Two captive multiple drive assembly screws
