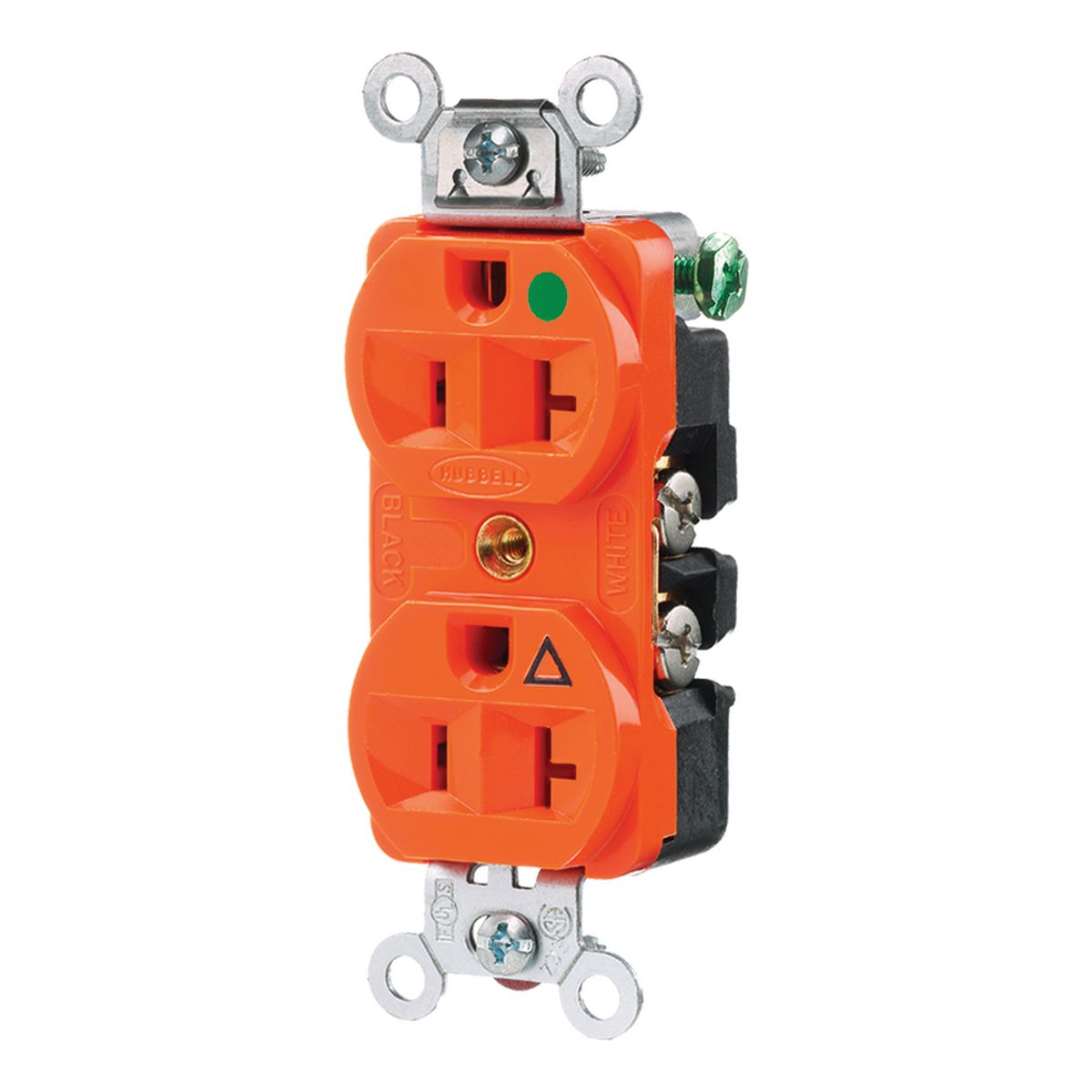

Product image for Hubbell IG8300 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Orange Isolated Ground Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell IG8300 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Orange Isolated Ground Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG8300 | Codale Part # 27206
$74.44/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Back and Side Wired, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Conduit Bending
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT
Grade
Hospital
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Isolated Ground, Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585778440
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Extra Heavy Duty Hospital Grade
Product UPC
78358577844
Weight
0.25 lb

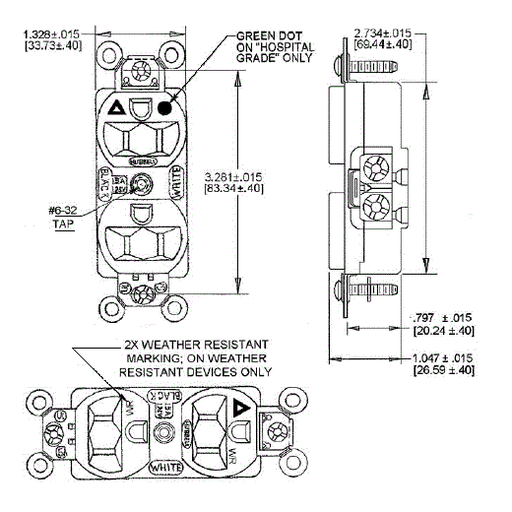

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts
  • Standard
