Hubbell HBL20443 30 Amp 480 Volt 3-Pole 4-Wire Black Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL20443 | Codale Part # 27229
$313.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Red.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw/Flush
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Screw Terminal
Type
Single
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017419
Color
Black/Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501741
Weight
0.55 lb

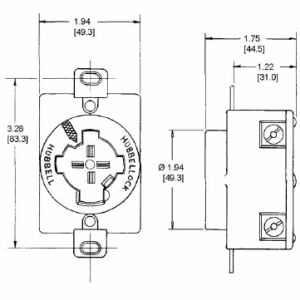

Dimensions

Height
1-3/4 Inch
Length
3.28 Inch
Width
1.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Thermoset molded housing provides maximum heat resistance
  • Auto Ejects Improperly Made Connection
