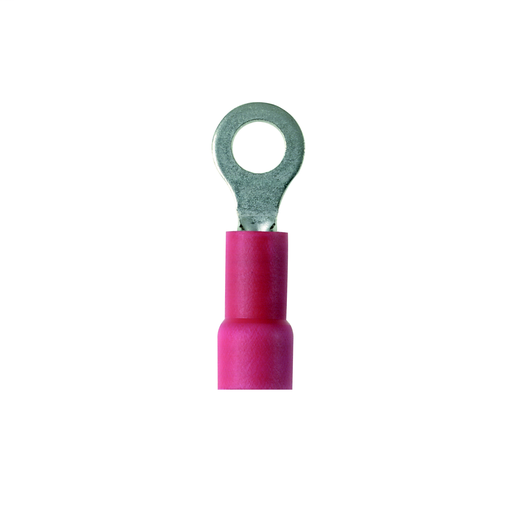

Panduit PV18-10RX-CY Ring Terminal, Expanded Vinyl Insulation, 22 - 18 AWG, #10 stud size

Manufacturer: PANDUIT | Catalog # PV18-10RX-CY | Codale Part # 2727676
$162.02/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Ring Terminal, 22 . 18 AWG, #10 stud size, vinyl insulated, expanded insulation for large wire O.D., standard package.

Technical Information

Barrel Length
0.4 in
Barrel Type
Brazed Seam,Insulation Support
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
167 degrees F
Size
NA
Stud Hole Size
M5
Tc Connection
Expanded Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
600.0
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-term

General Product Info

12-Digit UPC
074983688531
Color
Red
Finish
Tin Plated
Product Type
Terminals
Product UPC
07498368853
UNSPSC
39121409
Weight
0.0028 lb

Dimensions

Length
0.96 Inch
Outer Diameter
0.17 in
Overall Length
0.96 in
Width
.31 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No
Country of Origin
Mexico
Hazmat Flag
No
