Hubbell 1222W Hubbell-PRO Toggle Switch, Double Pole, 20A 120/277V, White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 1222W | Codale Part # 27476
$13.21/ea
ea
Log in or register to view your price, purchase history, and more!
198 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, White

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Double Pole
Tc Connection
Back and Side Wired
Type
General Purpose, 2-Position, Standard, Heavy Duty
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585181417
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Heavy Duty
Product UPC
78358518141
Weight
0.15 lb

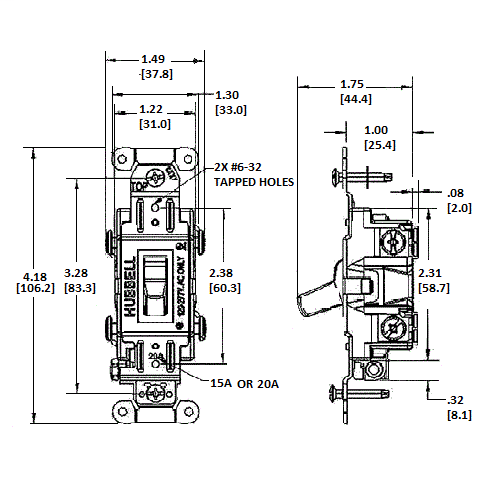

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Corrosion-resistant steel with zinc-plated bridge
  • Color-coded by amperage for easy inspection post-installation
  • Strip gauge included for precise wiring.
  • This 2 Way Toggle Switch features a corrosion-resistant zinc-plated bridge, color-coded amperage for easy inspection, and a precise strip gauge for accurate wiring.
