Hubbell HBL9315 30 Amp 277 Volt 2-Pole 3-Wire NEMA 7-30R Black Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9315 | Codale Part # 27629
$74.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 277V AC, 7-30R, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty
Conductor Size
12-4 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Composite
NEMA
7-30R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Back and Side Wired
Type
Single
Voltage
2,000 Volt
Wattage
8310 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015514
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501551
Weight
0.45 lb

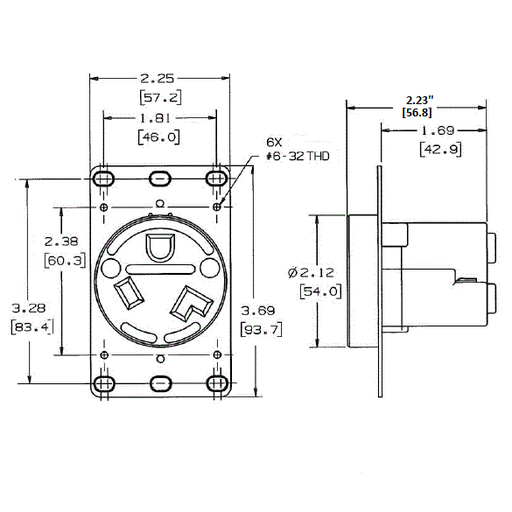

Dimensions

Height
2.23 Inch
Length
3.28 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
