PAN CMDAGSCZBL Mini-Com® APC Green

Manufacturer: PANDUIT | Catalog # CMDAGSCZBL | Codale Part # 2765164
$87.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

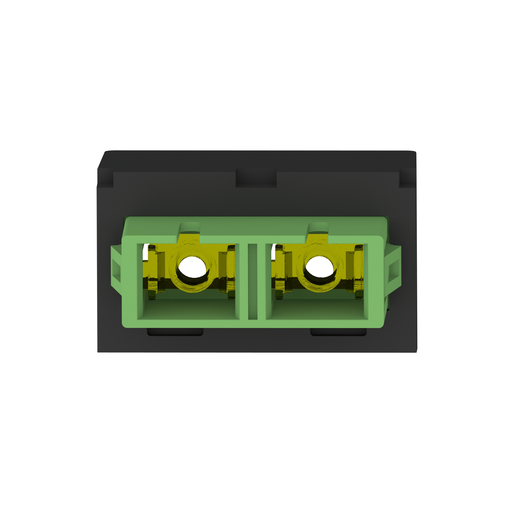

The Mini-Com® Duplex SC/APC Green Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two SC/APC Green duplex connectors in two Mini-Com module spaces and features an APC Green fiber adapter along with a black module and has zirconia split sleeves.

Technical Information

Applications
For Patch Panels and Surface Mount Boxes
Body Type
Duplex
Connection Type
SC
Fiber Type
Single Mode OS1/OS2 9/125 m
Material
Zirconia Ceramic
Max Operating Temperature
140 degrees F
Min Operating Temperature
0 degrees C
Number of Ports
1
Operating Temperature
140 degrees F
Standard
ANSI C-73
Type
APC Duplex, Cable Mounted

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983592975
Color
Black Module, Green Adapter
Product UPC
07498359297
UNSPSC
43223323,43223323
Used With
Faceplates
Weight
0.0400 lb

Dimensions

Overall Length
2.21 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
