Hubbell CS6364-C 50A 125/250V AC Twist-Lock Black Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS6364C | Codale Part # 27676
$148.99/ea
ea
Log in or register to view your price, purchase history, and more!
228 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw
Current
50 Amp
Material
Plastic
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, Straight
Voltage
125/250 Volt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585827971
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358582797
Weight
1.05 lb

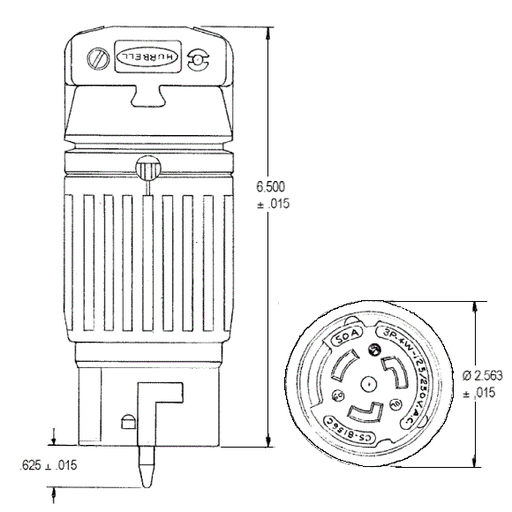

Dimensions

Height
2-1/2 Inch
Length
6-1/2 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
