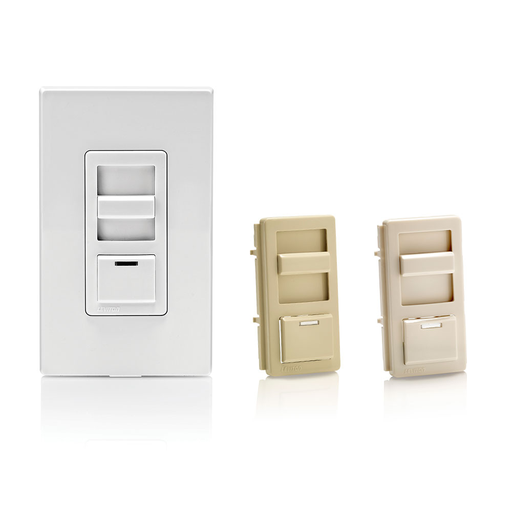

Product image for Leviton IP710-DLZ IllumaTech Fluorescent Slide Dimmer for Mark7 0-10V Ballast w/ LED Locator Light - White (Ivory & Light Almond change kits incl.)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Leviton IP710-DLZ IllumaTech Fluorescent Slide Dimmer for Mark7 0-10V Ballast w/ LED Locator Light - White (Ivory & Light Almond change kits incl.)

Manufacturer: Leviton | Catalog # IP710-DLZ | Codale Part # 2768672
$137.51/ea
ea
Log in or register to view your price, purchase history, and more!
28 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 28mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond

Technical Information

Action
Standard ON/OFF
Applications
For 1-10 V Electronic Ballast Control, Commercial Applications
Frequency
60 Hz
Material
Plastic
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
32 - 130 degrees F
Power Rating
1200 W
Size
4.15 H x 2.12 W x 1.41 D IN
Standard
UL Listed (E-31373), CSA Certified (LR-3413)
Style
IllumaTech
Switch Type
3-Way,Single-Pole
Type
Electromechanical, Push Button
Voltage
120 Volt
Wattage
1200 Watt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, IllumaTech™

General Product Info

12-Digit UPC
078477282380
Color
Ivory,Light Almond,White
Environmental Conditions
UL94 V-2 Flammability
Product UPC
07847728238
Weight
0.3600 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
CCSAus
Country of Origin
China
Features
  • Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
  • Dual voltage 120V/277V; 50mAmps maximum sink current
  • No power pack required for switching
  • Provides single pole or 3-way lighting control when used with a 3-way switch
  • Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)

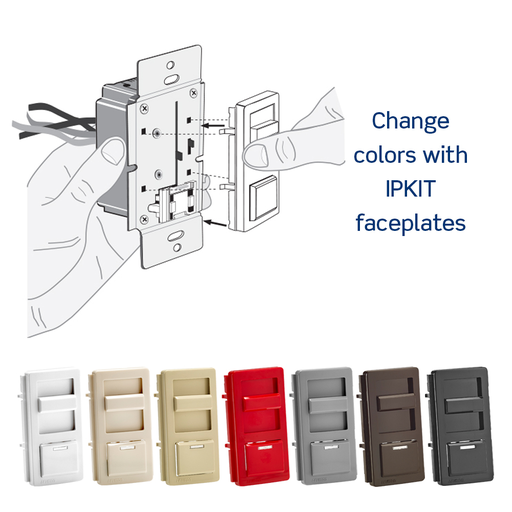

  • Change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
  • Fluid slide movement allows fine adjustment of light level with minimal effort
  • Captive wraparound slide bar remains securely attached
  • INNOVATIVE Designed for use with LED fixtures using 0-10V power supplies for dimming lighting in commercial spaces such as hotels, restaurants, offices and other public spaces
  • ADVANCED No power pack required for switching
  • EXCEPTIONAL Superior quality and dimming performance
  • CONVENIENT Separate on/off switch allows you to set and keep preferred dimming level
  • STYLISH Easily change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
