Hubbell CS8175 50 Amp 480 VAC 3-Phase 3-Pole 4-Wire Steel Casing Flanged Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS8175 | Codale Part # 27688
$406.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
10-6 AWG
Current
50 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Steel
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Standard Single
Voltage
480 Volt
Wattage
24000 Watt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585828602
Color
Metallic
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358582860
Weight
0.85 lb

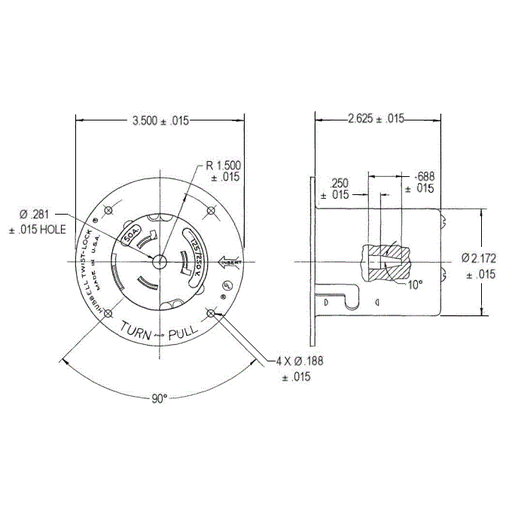

Dimensions

Height
2.62 Inch
Length
2.17 Inch
Width
3.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • Standard Product
