Hubbell CS8364-C 50A 3Ph 250V AC Twist-Lock Black Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS8364C | Codale Part # 27692
$173.58/ea
ea
Log in or register to view your price, purchase history, and more!
97 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw
Current
50 Amp
Material
Composite
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, Straight
Voltage
250 Volt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585829104
Color
Black and White
Environmental Conditions
Indoor Only
Product UPC
78358582910
Weight
1.10 lb

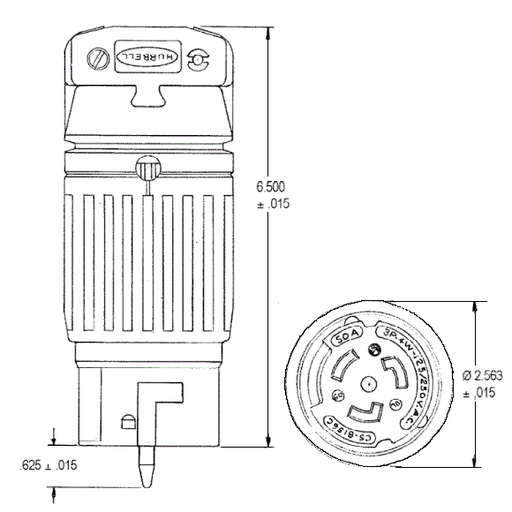

Dimensions

Height
2-1/2 Inch
Length
6-1/2 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
