Hubbell CS8464C 50 Amp 480 Volt 2-Pole 3-Wire Black and White Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS8464C | Codale Part # 27693
$510.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
For Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw Terminal
Current
50 Amp
Material
Nylon
Number of Conductors
3
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard, Grounding, Straight
Voltage
480 Volt
Wire Count
3
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585829142
Color
Black/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358582914
Weight
1.05 lb

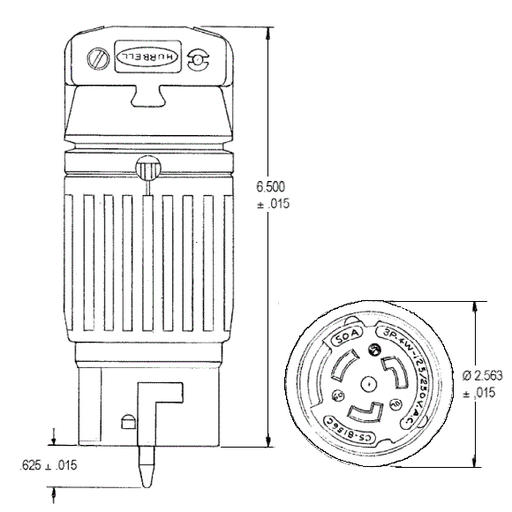

Dimensions

Height
2-1/2 Inch
Length
6-1/2 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
