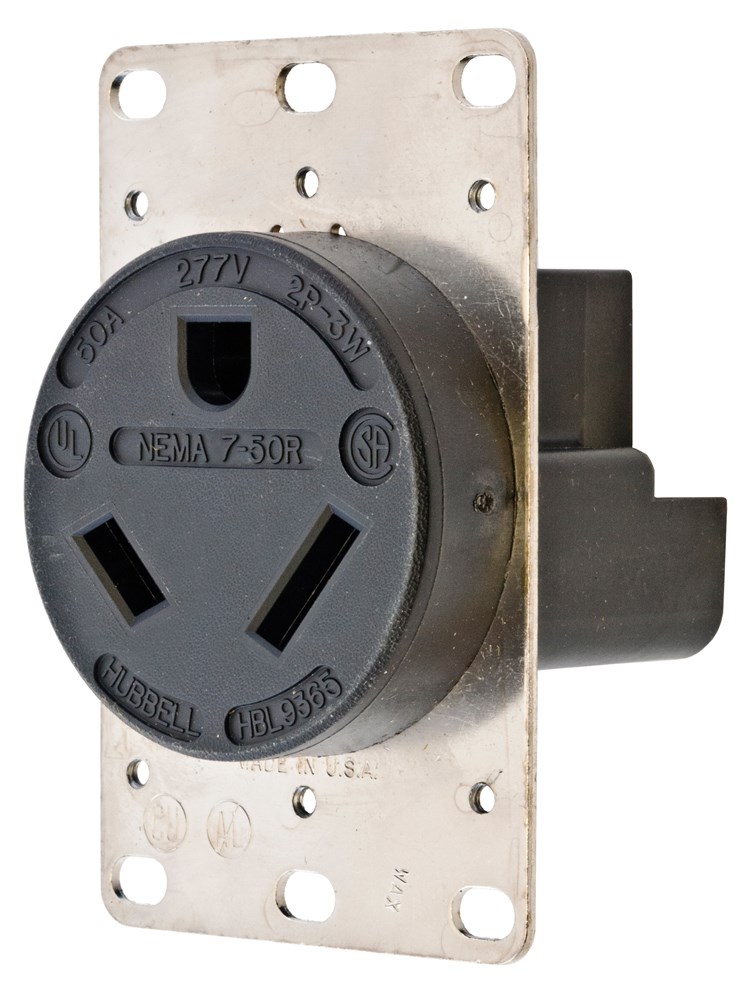

Product image for Hubbell HBL9365 50 Amp 277 Volt 2-Pole 3-Wire NEMA 7-50R Black Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

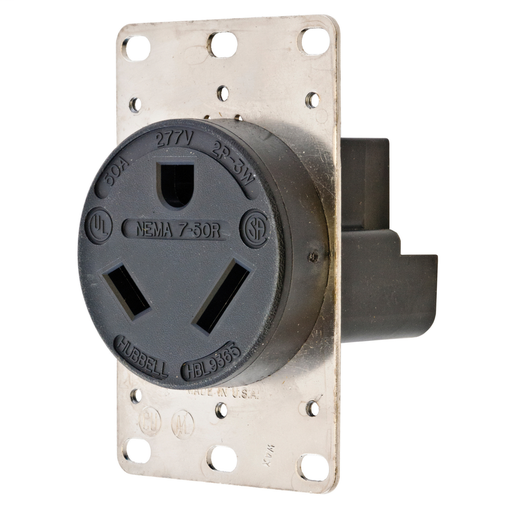

Hubbell HBL9365 50 Amp 277 Volt 2-Pole 3-Wire NEMA 7-50R Black Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9365 | Codale Part # 27720
$86.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 50A 277V AC, 7-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
For Heavy Duty Applications
Conductor Size
10-6 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
7-50R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Screw, 6 Terminals
Type
Standard
Voltage
2,000 Volt
Wattage
13850 Watt
Wire Count
3
Wire Size
12-4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Receptacles

General Product Info

12-Digit UPC
783585015538
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501553
Weight
0.0440 lb
Listings
  • UL Listed File E2186
  • CSA Certified
  • NEMA® WD-6 Compliant
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
