Hubbell HBL9379 50 Amp 277 VAC 2-Pole 3-Wire NEMA 7-50P Black Nylon Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL9379 | Codale Part # 27721
$317.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 50A 277V AC, 7-50P, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
For Commercial and Industrial use
Conductor Size
12-4 AWG
Cord Type
Portable
Current
50 Amp
Horsepower
2 hp
Material
Plastic
Mounting Type
Cord
NEMA
7-50P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Terminal Screws
Type
Insulgrip, Right Angle, 4-Position
Voltage
277 Volt
Wattage
13850 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015545
Color
Black
Product UPC
78358501554
Weight
0.55 lb

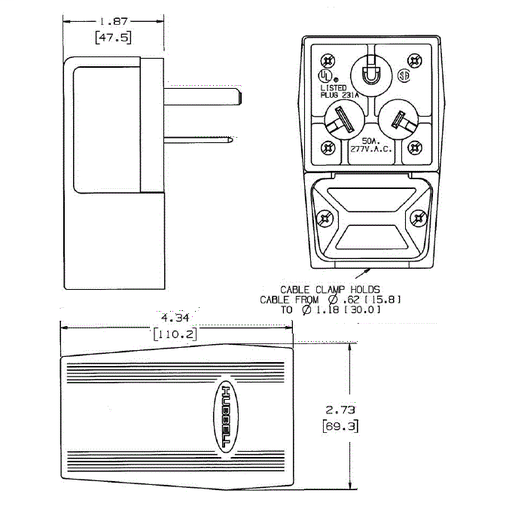

Dimensions

Height
1.88 Inch
Length
4.34 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon
  • 4-Position
  • Heavy Duty
