Hubbell HBL2451 20 Amp 277/480 Volt 4-Pole 4-Wire NEMA L19-20P Black and White Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2451 | Codale Part # 27749
$134.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

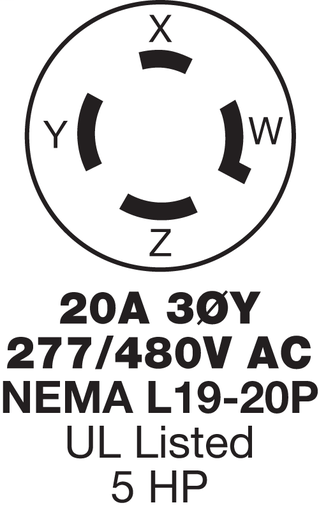

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase Y 277/480V AC, 4-Pole 4-Wire Non-Grounding, NEMA L19- 20P, Screw Terminal, Black and White Nylon

Technical Information

Amperage
20 Amp
Applications
Power Connection
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Horsepower
5 hp
Material
Nylon
Mounting Type
Cord
NEMA
L19-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C

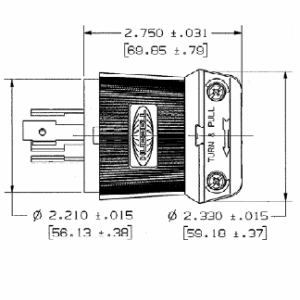

Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Type
Standard Sized
Voltage
277/480 Volt
Wattage
9600 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038391
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503839
Weight
0.35 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
