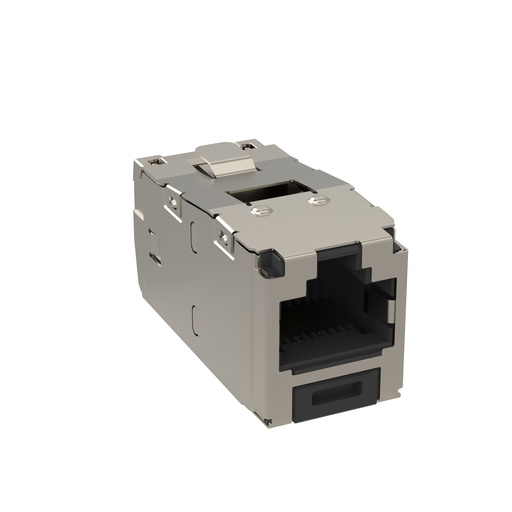

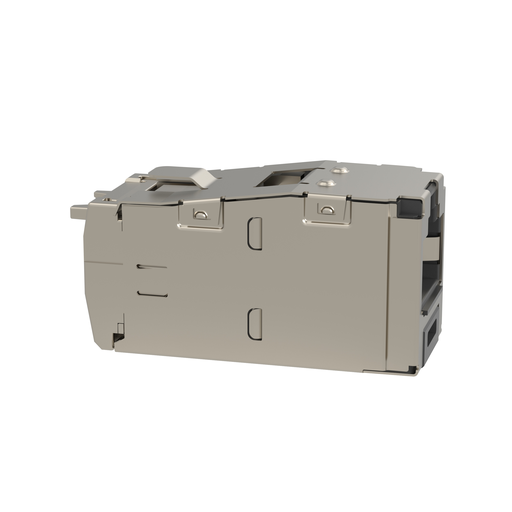

Panduit CJS688TGY Shielded RJ45 Cat 6 TG Jack Module, Black

Manufacturer: PANDUIT | Catalog # CJS688TGY | Codale Part # 2805562
$31.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.

Technical Information

Applications
Unshielded
Cable Size
22-26 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ-45, Shielded, TG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983035632
Color
Black
Product UPC
07498303563
Used With
Flat, Round and Solid Core Cable
Weight
0.0400 lb

Dimensions

Depth
1-1/2 Inch
Height
0.73 Inch
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica,USA

Certifications & Compliance

Green Distribution CO2
0.006 kg
Green End-of-Life CO2
0.02 kg
Green Manufacturing CO2
2.6 kg
Green Total CO2
2.645 kg
Green Transport-to-DC CO2
0.019 kg
Green Use-Phase CO2
0 kg
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant
