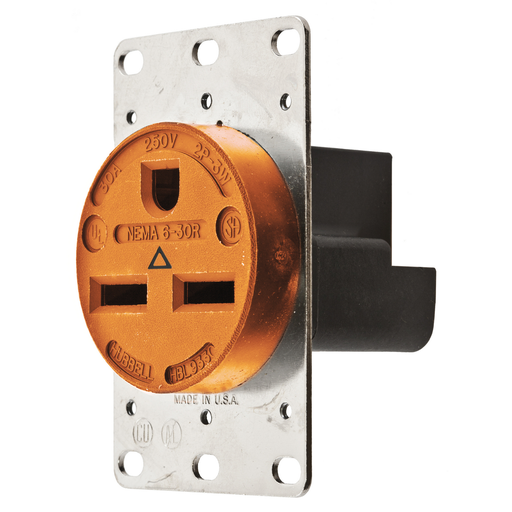

Hubbell IG9330 SGL Receptacle, IG, 30A 250, 6-30R, OR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG9330 | Codale Part # 28125
$92.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 5-20R, Orange, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty
Conductor Size
10 AWG
Connection Type
Back and Side Wired
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Isolated
Horsepower
2 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
6-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
260 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585880754
Color
Orange
Environmental Conditions
Indoor Only
Product Series
Straight Blade
Product UPC
78358588075
Weight
0.4 lb

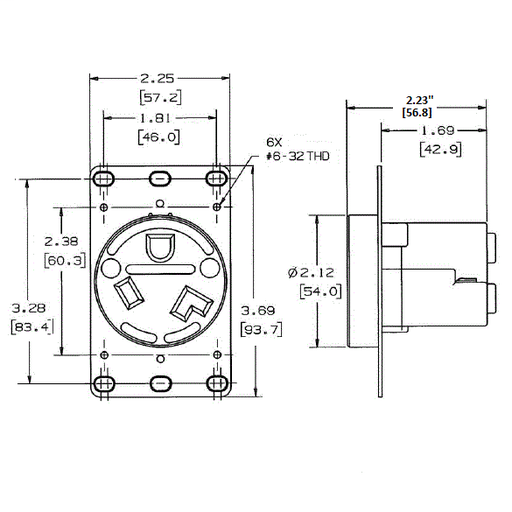

Dimensions

Height
2.23 Inch
Length
3.68 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Isolated Ground
