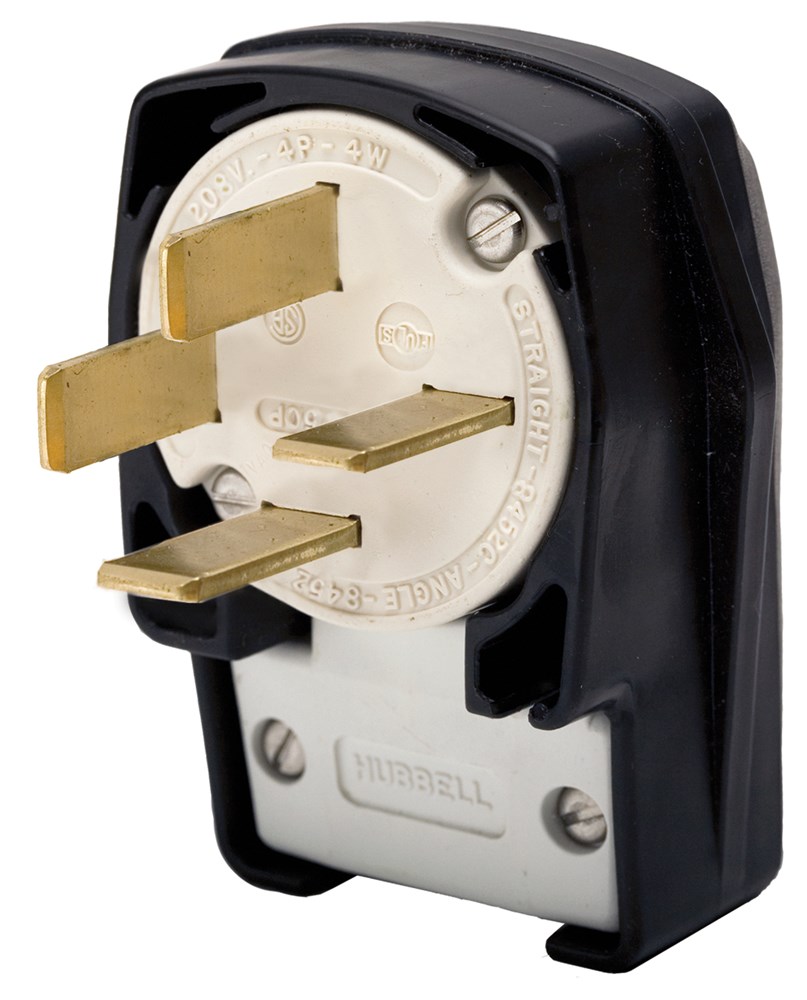

Hubbell HBL8352C Plug, 4P4W, 50A 120/208V, 18-50P, B/W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8352C | Codale Part # 28150
$340.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 4-Pole 4-Wire non Grounding, 50A 3 Phase, 120/208V AC, 18-50P, Black and White, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
50 Amp
Material
Nylon
NEMA
18-50P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Size
Standard Sized
Tc Connection
Terminal Screws
Type
Plug
Voltage
120 Volt
Wattage
10400 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015507
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358501550
Weight
0.85 lb

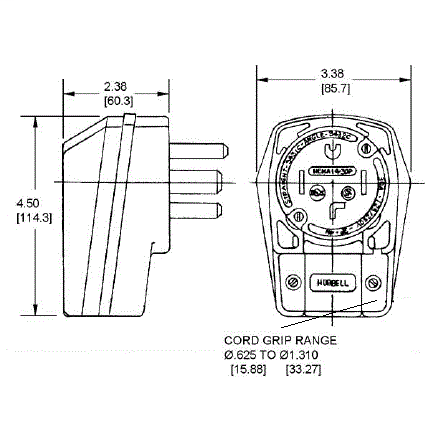

Dimensions

Height
2.37 Inch
Length
4-1/2 Inch
Width
2.72 in
Voltage Rating
  • 120 V
  • 208 V
Overview
  • Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 50A 3 Phase120/208V AC, 18-50P, Black and White, Single Pack.
