Hubbell HBL420HI 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL420HI | Codale Part # 28344
$68.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, 4- Plex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack

Technical Information

Amperage
20 Amp
Applications
For 4-Plex Hospital Grade Applications
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Hospital
Horsepower
1 hp
Material
Polycarbonate
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Back Wired Terminal Screws
Type
Quad Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
4-Plex®

General Product Info

12-Digit UPC
783585015774
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358501577
Weight
0.4 lb

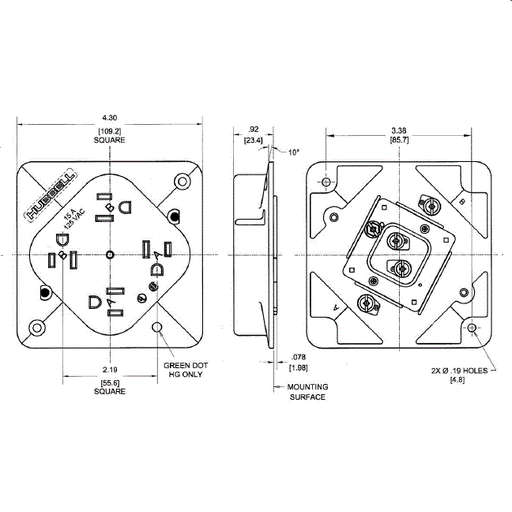

Dimensions

Height
0.92 Inch
Length
4.3 Inch
Width
4.3 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • High impact resistant Polycarbonate construction
