Hubbell HBL1557W 20 Amp 120/277 VAC SPDT White Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1557W | Codale Part # 28511
$29.70/ea
ea
Log in or register to view your price, purchase history, and more!
37 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws, White Toggle

Technical Information

Action
Momentary Center Off
Actuator
Toggle
Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
SPDT
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Single Pole Double Throw
Tc Connection
Back and Side Wired
Type
General Purpose, Standard, Extra Heavy-Duty, 3-Position
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585432908
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358543290
Weight
0.2 lb

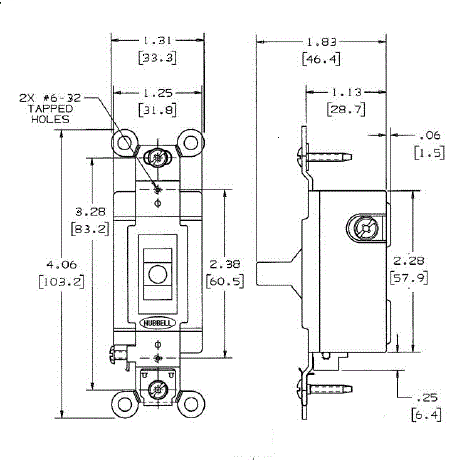

Dimensions

Height
1.89 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Strip gauge for accurate wiring
  • Momentary Contact
