Hubbell HBL3032PL 30 Amp 120/277 VAC 2-Pole Red Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3032PL | Codale Part # 28516
$111.50/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Double Pole, 30A 120/277V AC, Back and Side Wired, Red Toggle

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
30 Amp
Enclosure
None
Grade
Industrial
Material
Thermoset
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Double Pole
Tc Connection
Back and Side Wired
Type
Standard, 2-Position, Extra Heavy Duty, Industrial Grade, General Purpose
Voltage
120-277 Volt
Wattage
8310 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585434605
Color
Red
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358543460
Weight
0.2 lb

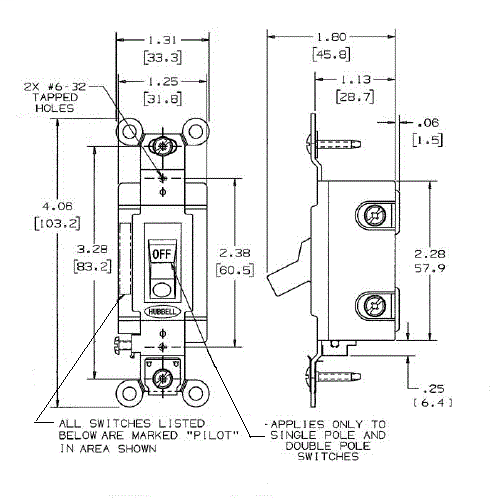

Dimensions

Height
1.86 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • Pilot Light
