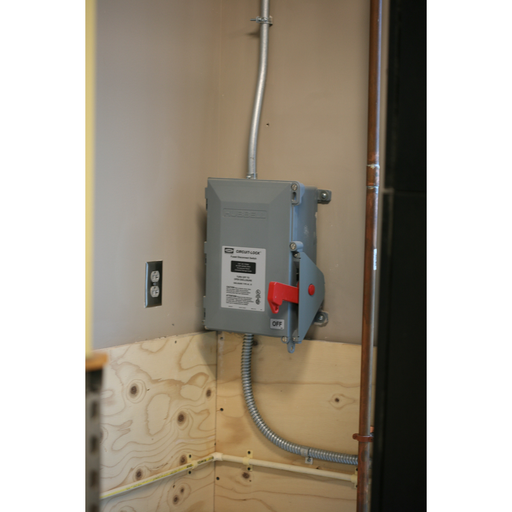

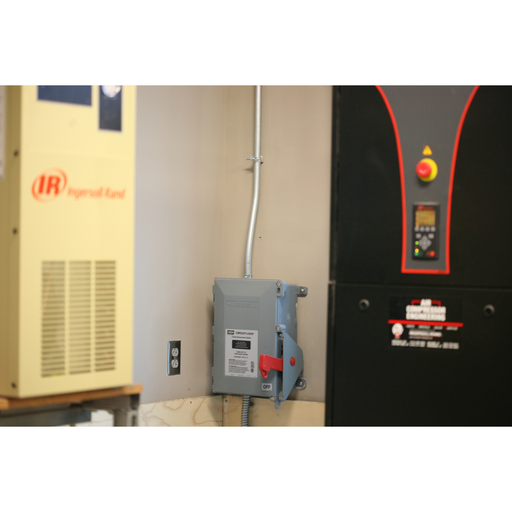

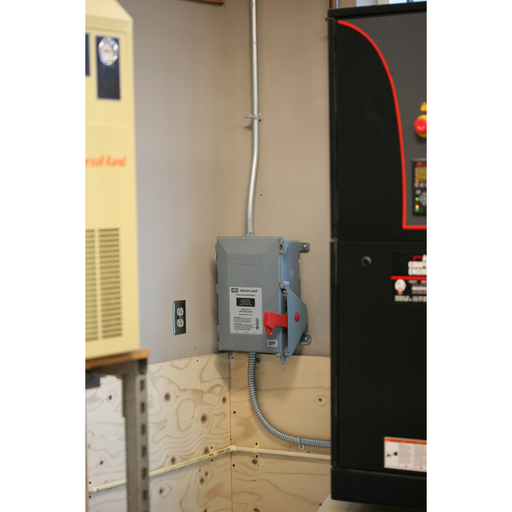

Hubbell FDS30 30 A Fused Disconnect Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # FDS30 | Codale Part # 28538
$2,184.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Fused Disconnects, Heavy Duty, Three Pole, 30A 600V AC, Terminal Screws, Gray

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
For Extra Heavy Duty Industrial
Connection Type
Screw Terminal
Contact Rating
30A
Current
30 Amp
Horsepower
20 hp
Material
Composite
Mounting Type
Foot
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
15.36 in x 11.46 in x 8.43 in
Standard
UL
Style
Heavy Duty
Switch Type
Three Pole Complete Unit
Tc Connection
Terminal Screws
Temperature Rating
67 degrees C Maximum Continuous, -40 degrees C Minimum Without Impact
Type
Standard
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585519302
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Composite
Product Series
Fused
Product UPC
78358551930
Weight
13.95 lb

Dimensions

Height
8.43 Inch
Length
15.36 Inch
Width
11.46 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Safety interlocked fuse access door
  • Removable door for ease of wiring and installation
  • Lockable high visibility red handle for OSHA Lockout/Tagout
  • This fused disconnect switch features a lockable handle for enhanced safety, complying with OSHA Lockout/Tagout regulations, and a non-metallic, corrosion-resistant enclosure suitable for both indoor and outdoor applications.
