Hubbell HBL4586C 15 Amp 250 Volt NEMA L6-15P White Nylon Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4586C | Codale Part # 29189
$77.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14 AWG
Connection Type
Screw Terminal
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Composite
NEMA

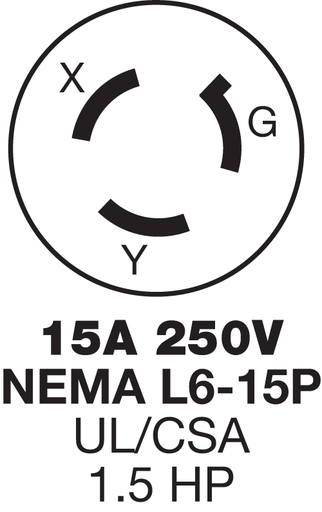

L6-15P
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec.W-C-596,UL 498
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Standard, Single, Locking, 2-Pole
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585170206
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358517020
Weight
0.10 lb

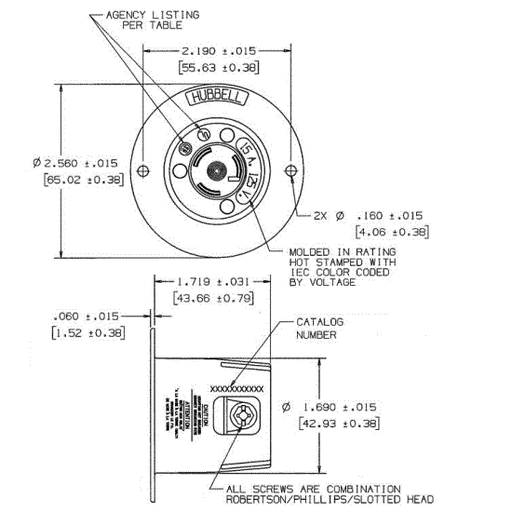

Dimensions

Height
1.72 Inch
Length
2.56 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
