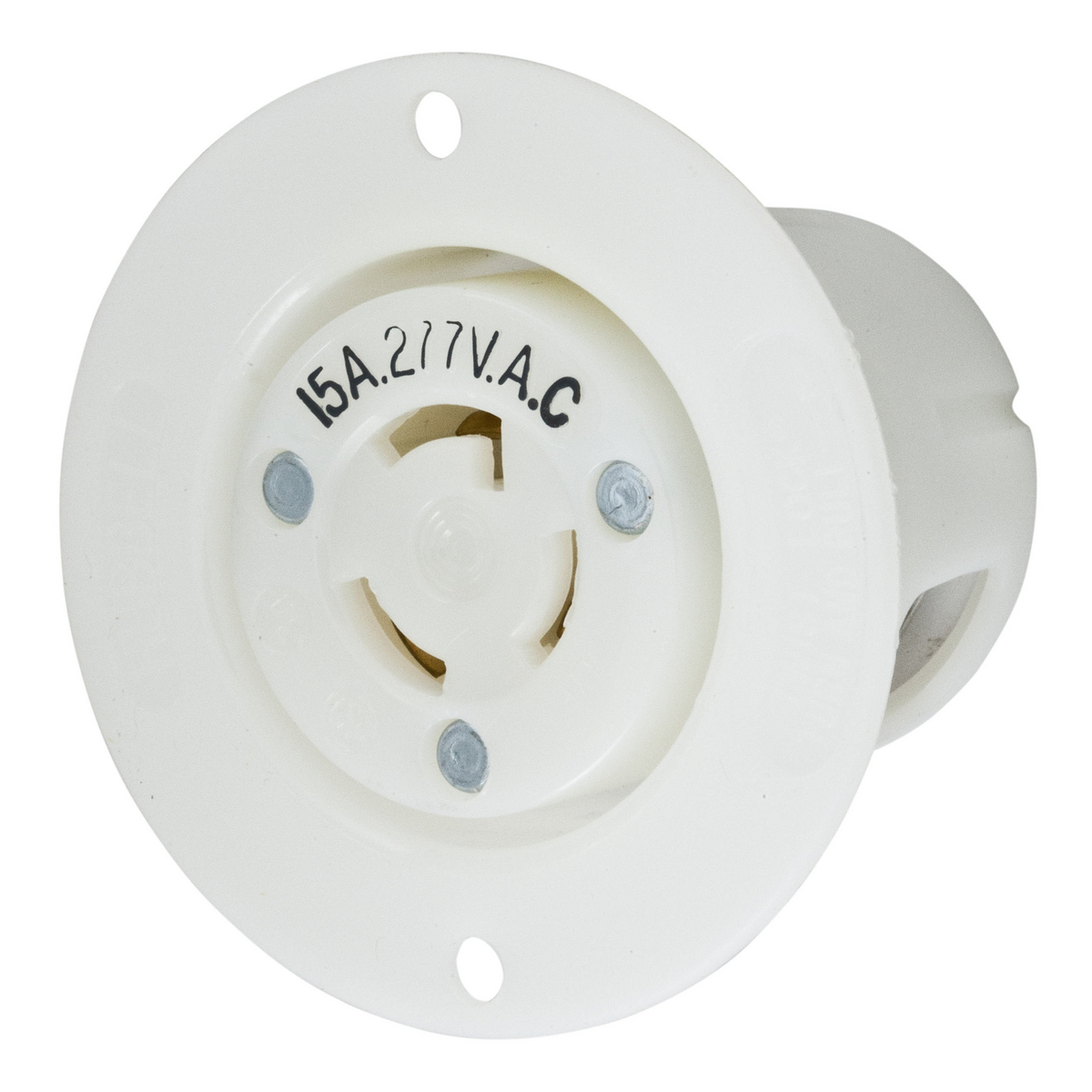

Hubbell HBL4785C 15 Amp 277 VAC NEMA L7-15R White Nylon Locking Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4785C | Codale Part # 29201
$108.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

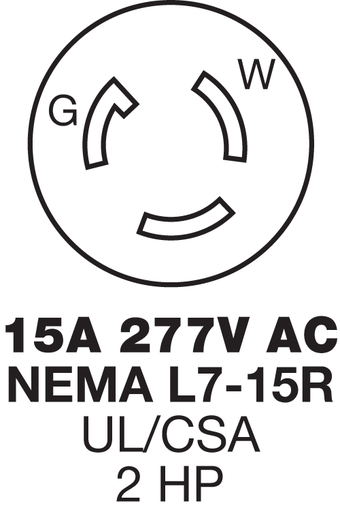

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
15 Amp
Applications
Insulgrip
Conductor Size
18-14 AWG
Connection Type
Screw Terminal
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
L7-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Temperature Rating
-40 to 75 degrees C
Type
Standard
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585172101
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358517210
Weight
0.15 lb

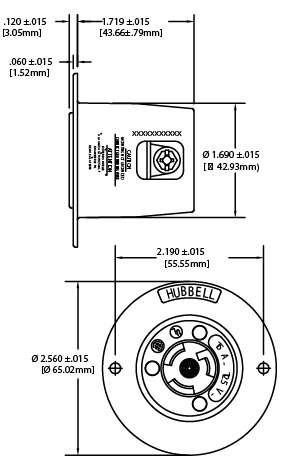

Dimensions

Height
1.71 Inch
Length
2.56 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
