Hubbell HBL5479CFlanged-Receptacle, 20A 250V, 6-20P, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5479C | Codale Part # 29220
$67.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Heavy Duty Applications
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Screw, 6 Terminals
Type
Standard
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
18-10 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585175058
Color
Black
Environmental Conditions
Indoor Only
Product Series
Extra Heavy Duty
Product UPC
78358517505
Weight
0.2 lb

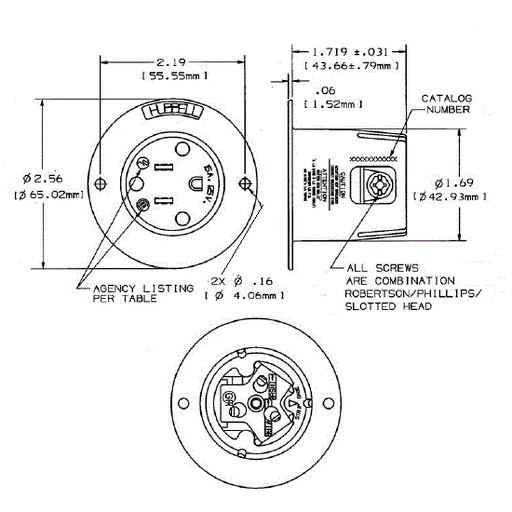

Dimensions

Height
2.56 Inch
Length
1.72 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws
  • Mounting screws included
  • Standard
