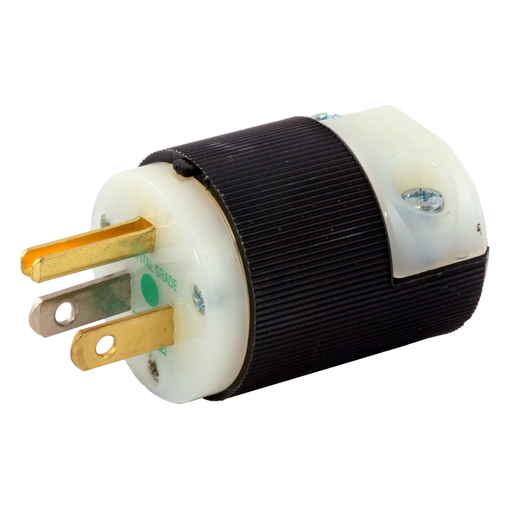

Hubbell HBL8215C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Black and White Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8215C | Codale Part # 29251
$65.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black and White , Single Pack.

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Conductor Size
18-10 AWG
Cord Type
Portable
Current
15 Amp
Grade
Hospital
Grounding
Yes
Horsepower
0.5 hp
Material
Composite
Mounting Type
Surface
NEMA
5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File No. E2186
Style
Insulgrip
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585179209
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358517920
Weight
0.15 lb

Dimensions

Height
1.53 Inch
Length
1.97 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Beveled housing prevents snagging
  • Powerful, offsetting cord grips clamp on individual conductors
