Hubbell HBL8315CAT 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20P Straight Blade Angle Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8315CAT | Codale Part # 29256
$111.91 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip, Hospital Grade, Angled, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20P, Clear, Single Pack

Technical Information

Amperage
20 Amp
Applications
Hospitals, Heavy Duty
Conductor Size
18-10 AWG
Cord Type
All Portable
Current
20 Amp
Grade
Hospital
Grounding
Grounding
Horsepower
1 hp
Material
Composite
Mounting Type
Cord
NEMA
5-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File E1706
Style
Insulgrip
Tc Connection
Terminal Screws
Type
Hospital Grade, Insulgrip, Right-angled
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585180007
Color
Transparent
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358518000
Weight
0.15 lb

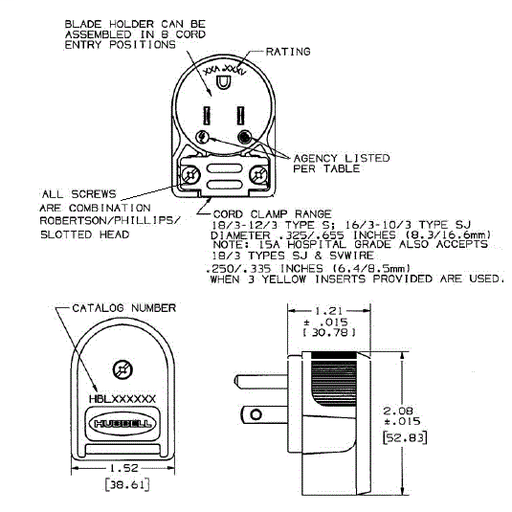

Dimensions

Height
2.11 Inch
Length
2.42 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Transparent for easy visual inspection of termination
  • 8 position angle plug
