Hubbell HBL8319C 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Black/White Nylon Straight Blade Device Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8319C | Codale Part # 29257
$138.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
20 Amp
Grade
Hospital
Horsepower
1 hp
Material
Composite
NEMA
5-20R
Number of Conductors
3
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File No. E2186
Style
Insulgrip
Tc Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C without Impact
Type
Standard, Hospital Grade
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585180502
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358518050
Weight
0.2 lb

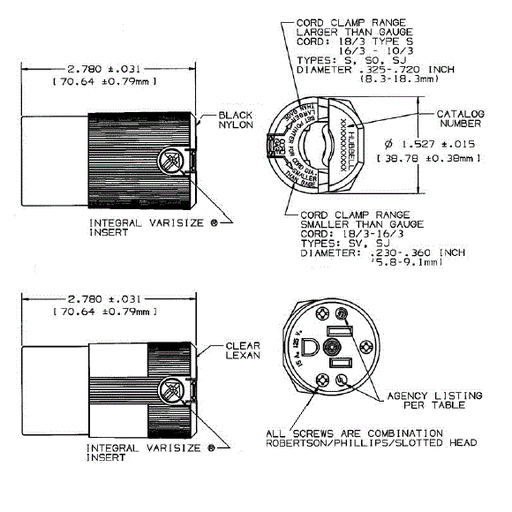

Dimensions

Height
1.53 Inch
Length
2.78 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Beveled housing prevents snagging
  • Powerful, offsetting cord grips clamp on individual conductors
  • Standard Product
