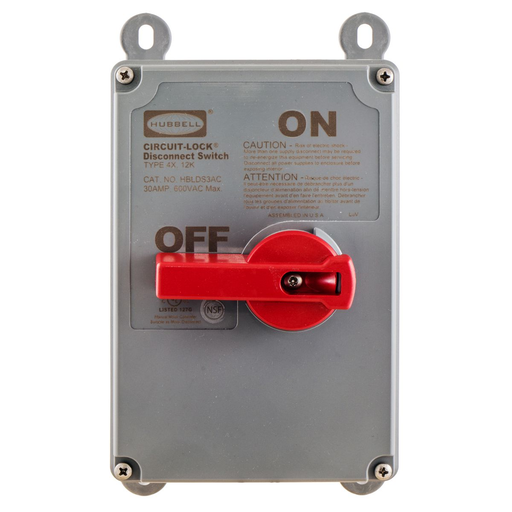

Hubbell HBLDS6AC 60 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS6AC | Codale Part # 29402
$904.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure, With Aux Contact

Technical Information

Action
Snap
Actuator
Lever
Amperage
60 Amp
Applications
Extra Heavy Duty Industrial Application
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
60A
Current
60 Amp
Enclosure
Non-Metallic
Load Rating
36000 W
Material
Composite
Mounting Type
Feet
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Heavy Duty
Switch Type
Three Pole Unfused W/ Aux Contact
Tc Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
Standard, 2 Position, Lever, Non-Fused, Snap
Voltage
600 Volt
Wattage
36 kW

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585430737
Environmental Conditions
NEMA 4X
Housing Material
Plastic
Product Series
Non-Fused
Product UPC
78358543073
Shape
Square Top
Weight
5.75 lb

Dimensions

Height
5.94 Inch
Length
11 Inch
Width
7.75 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications

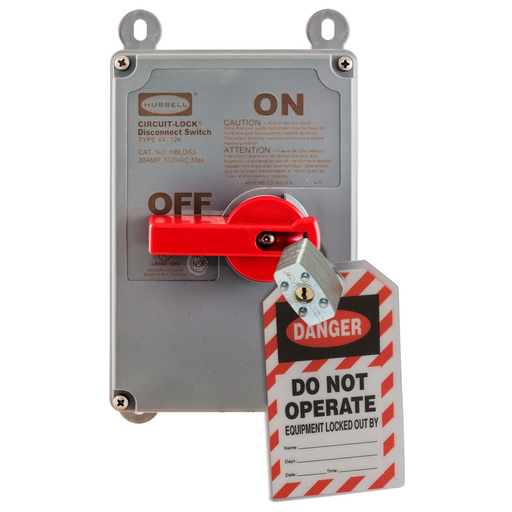

  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Reversible interior accomodates top or bottom conduit opening
