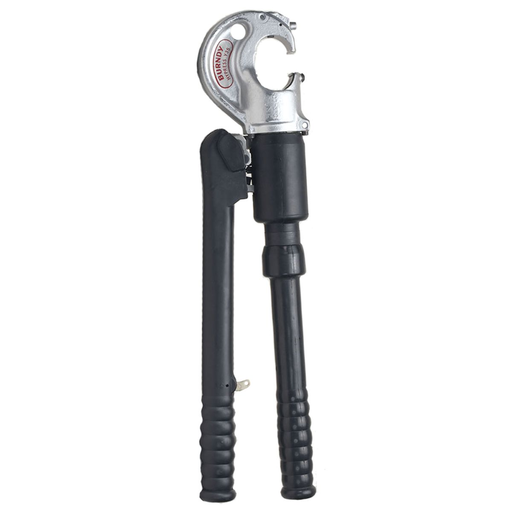

Burndy Y35 12T C-Head Crimper, #8 AWG - 750 kcmil CU/AL, up to 3/4" Ground Rod

Manufacturer: Hubbell-Burndy | Catalog # Y35 | Codale Part # 301959
$6,023.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
12-Ton C-Head Crimper, Self Contained Hydraulic, Uses U Dies, #8 AWG - 750 kcmil Copper and Aluminum, up to 3/4" Ground Rod

Technical Information

Applications
For Steel Wire Braiding
Crimping Force
12 t
Type
Self-Contained, C-Head, Insulated

Manufacturer Information

Brand
Burndy
Sub Brand
Hypress™

General Product Info

12-Digit UPC
781810408407
Product UPC
78181040840
Used With
YGH, YGHA, YGF Grounding Terminals, YGS, YGHS Splices Grounding, YGHC-C, YGHP-C YGHR-C Grounding Taps, N30-N500 Navy Cables, YA-A, AYP, AYPO Terminals
Weight
13.5 lb

Dimensions

Height
4-3/4 Inch
Length
23-1/4 Inch
Overall Length
590.78 mm
Warranty Length
2 yr
Width
2.75 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Comfort grip handles
  • Trigger controlled ram release
  • Short handle throw
  • Rubber covered handles
  • 180° head rotation
  • C-shaped head
  • Hole for lifting eye
  • Positive push button die locks
  • Rubber body covering
  • Built-in automatic 10,000 psi \"Blow-Off\" pressure release valve
  • Rapid ram advance handle
  • Y35-2 has rubber covered head
  • Compact C shaped head allows easy placement and removal from continuous conductor lengths, Easy to position tool for work with 180° head rotation, Body and handles covered with 3/16 molded rubber for tool impact protection, Easy die change accomplished with push button die locks
