Hubbell ATD500CRP 500 Square Foot Ceiling Mount Adaptive Occupancy Sensor with Relay

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATD500CRP | Codale Part # 302137
$295.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive Technology Dual (Ultrasonic and PIR) Ceiling Sensors,500 Square Feet CoverageWithRelay

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585392424
Color
Office White
Product UPC
78358539242
Weight
0.0700 lb

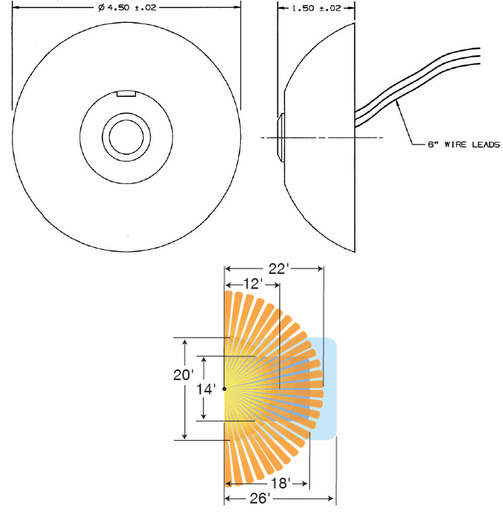

Dimensions

Height
1-1/2 Inch
Overview
  • Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments
  • Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Dual (Ultrasonic and PIR) Ceiling Sensors, 500 Square Feet CoverageWithRelay
  • Coverage 500 sq. ft. (180°) with photocell and isolated relay, low voltage sensor
  • With Photocell and Relay
  • lights turning ON when the space is un-occupied. Offer the best performance for most applications
  • Minimize the risk of false triggering
  • Office White ABS enclosure blends with ceiling tile
  • Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection
  • Relay to interface with auxiliary systems such as HVAC
Performance
  • Controls - Ambient Light - 1 to 1000 foot candles
  • Controls - Sensitivity - Adaptive 0 to 100%
  • Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes
  • Electrical - Isolated Relay - Normally open and normally closed terminals available
  • Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit
  • Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
  • Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity
  • Sensing Indicators - Passive Infrared - Red LED
  • Sensing Indicators - Ultrasonic - Green LED
