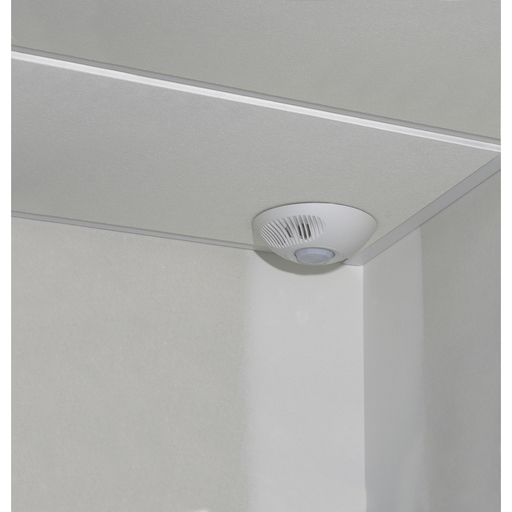

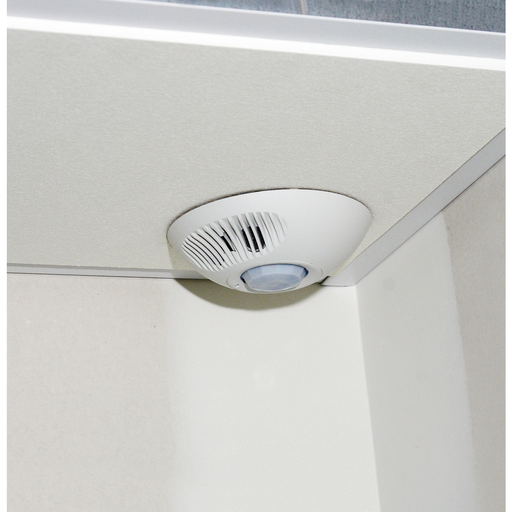

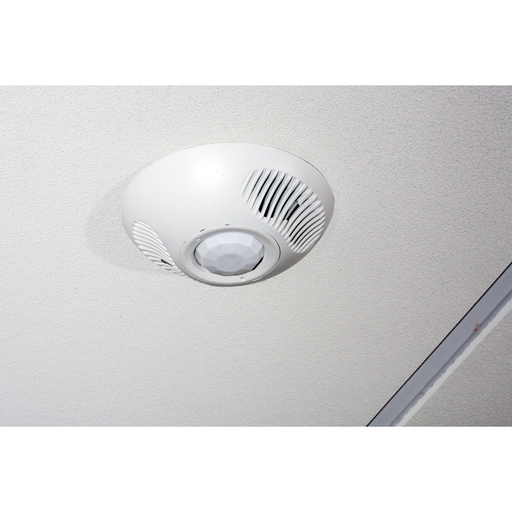

Product image for Hubbell ATD2000C 24 VDC 2000 Square Foot White Ultrasonic and Passive Infrared Adaptive Ceiling Mount Sensor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Hubbell ATD2000C 24 VDC 2000 Square Foot White Ultrasonic and Passive Infrared Adaptive Ceiling Mount Sensor

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATD2000C | Codale Part # 302138
$380.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyDual (Ultrasonic and PIR) Ceiling Sensors, 2000 Square Feet Coverage

Technical Information

Applications
Compatible with most LED and CFL
Indicator
PIR= Red LED, Ultrasonic= Green LED
Material
ABS Plastic
Mounting Type
Ceiling Mount
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Sensing Range
8 to 12 Feet Mounting Height
Standard
ASHRAE 90.1,CULus,UL244A
Type
Non-Reversing
Voltage
24 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
HMOSS

General Product Info

12-Digit UPC
783585392431
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Accessories,Dual
Product UPC
78358539243
Weight
0.4700 lb

Dimensions

Height
1-1/2 Inch
Length
7 Inch
Width
5.5 in

Certifications and Compliance

Country of Origin
China
Features
  • Coverage 2000 sq. ft. (360°), low voltage sensor
  • Minimize the risk of false triggering
  • lights turning ON when the space is un-occupied. Offer the best performance for most applications
  • Office White ABS enclosure blends with ceiling tile
  • Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection
  • Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments
  • Standard Product
