Hubbell ATD1000C 24 VDC 1000 Square Foot White Ultrasonic and Passive Infrared Adaptive Ceiling Mount Sensor

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATD1000C | Codale Part # 302139

$251.26/ea

ea

Compare

Log in or register to view your price, purchase history, and more!

Experiencing long lead times. Please call for availability.

Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive Dual-Technology Ceiling Sensor, 1000 Square FeetCoverage

Brand

Hubbell Wiring Device-Kellems

12-Digit UPC

783585392448

Color

Office White

Product UPC

78358539244

Weight

0.0670 lb

Height

1-1/2 Inch

Overview

Switches and Lighting Controls, Occupancy Sensors, Adaptive Dual-Technology Ceiling Sensor, 1000 Square Feet Coverage
Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments

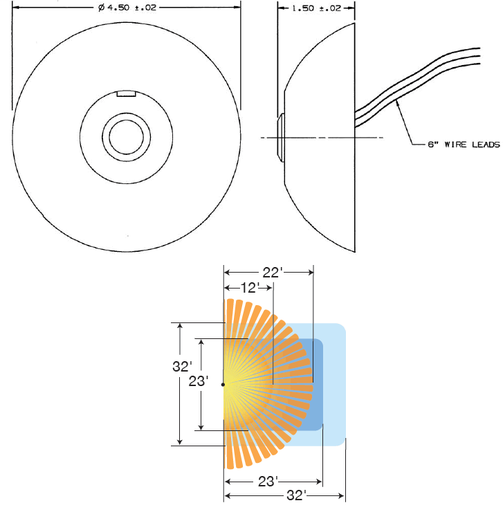

Coverage 1000 sq. ft. (180°), low voltage sensor
Standard Product
lights turning ON when the space is un-occupied. Offer the best performance for most applications
Minimize the risk of false triggering
Office White ABS enclosure blends with ceiling tile
Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection

Performance

Controls - Ambient Light - 1 to 1000 foot candles
Controls - Sensitivity - Adaptive 0 to 100%
Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes
Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit
Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity
Sensing Indicators - Passive Infrared - Red LED
Sensing Indicators - Ultrasonic - Green LED
