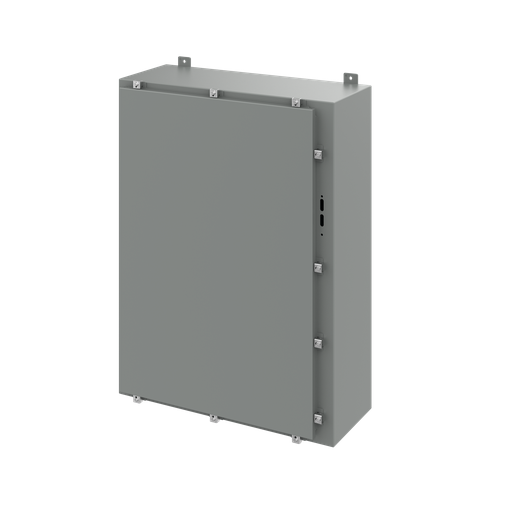

Product image for Hoffman A42HS3112LP Disconnect Enclosure with Clamps, Type 4, 42" x 31.38" x 12", Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman A42HS3112LP Disconnect Enclosure with Clamps, Type 4, 42" x 31.38" x 12", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A42HS3112LP | Codale Part # 30756
$2,590.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
For disconnect applications in which a clamp-secured door is preferred. Clamps on three sides of the door keep liquid and contaminants out. Preferred cutout accepts major brand disconnect switches and circuit breakers..

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Color Coding
ANSI 61
Cover Type
Clamp
Gauge
14
IP Rating
66
Material
Steel
Size
42.00x31.38x12.00 in
Standard
12,13,4,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510201609
Color
ANSI 61 Gray
Finish
Powder Coated
Product UPC
78351020160
Used With
Disconnect Switches
Weight
75 lb

Dimensions

Depth
12 Inch
Height
42 Inch
Length
46 Inch
Thickness
1.9 mm
Width
31.38 in
DISK UNSPSC
39121324
Features
  • Seams continuously welded and ground smooth
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Stainless steel door clamps on three sides of door
  • Removable door with continuous hinge
  • Type 4 rated door gasket
  • Collar studs for mounting optional panels
  • Holes in body for mounting disconnect operating handle and operating mechanism
  • Bonding provision on door
  • Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
