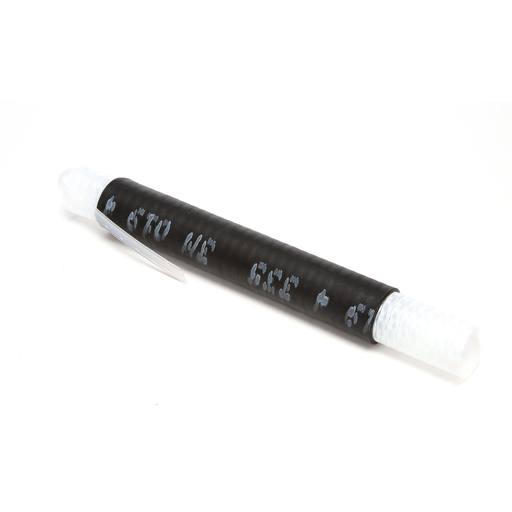

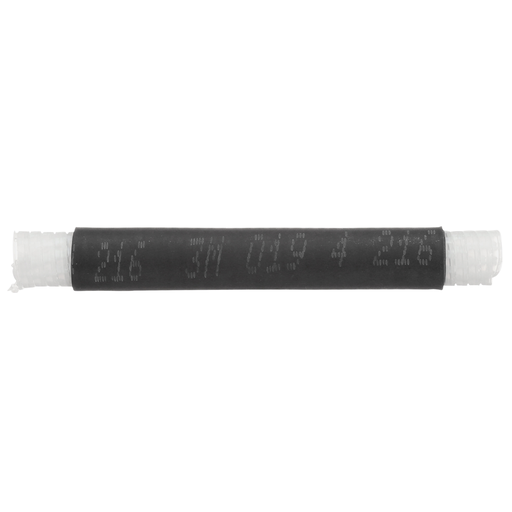

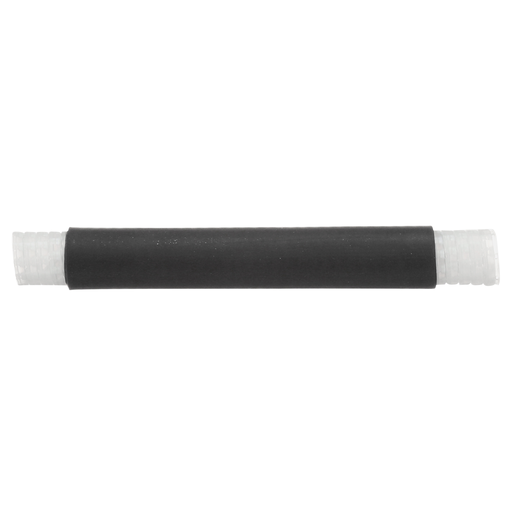

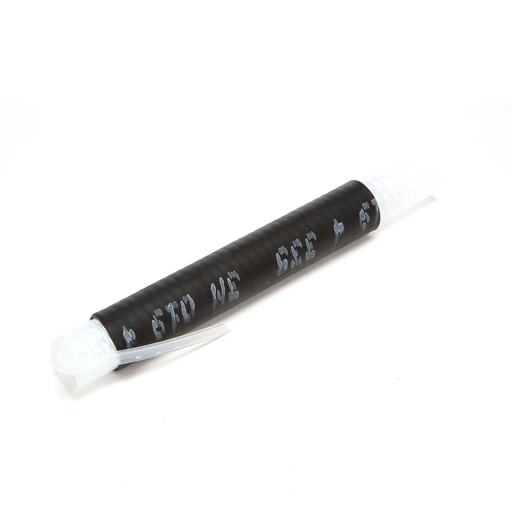

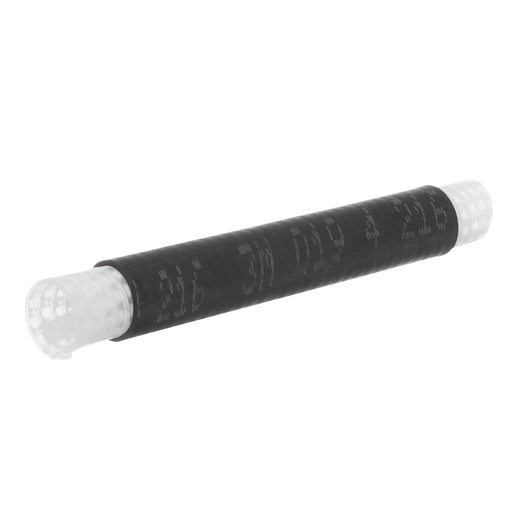

3M 8423-6P Cold Shrink Tube

Manufacturer: 3M | Catalog # 7100164587 | Codale Part # 313048
$46.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.

Technical Information

Cable Type
Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
4 AWG
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Size
4 AWG; 6 AWG
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007428640
Color
Black
Product Type
Splice
Product UPC
05400742864
Weight
0.1000 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Covers a wide range of cable cross sections
  • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
