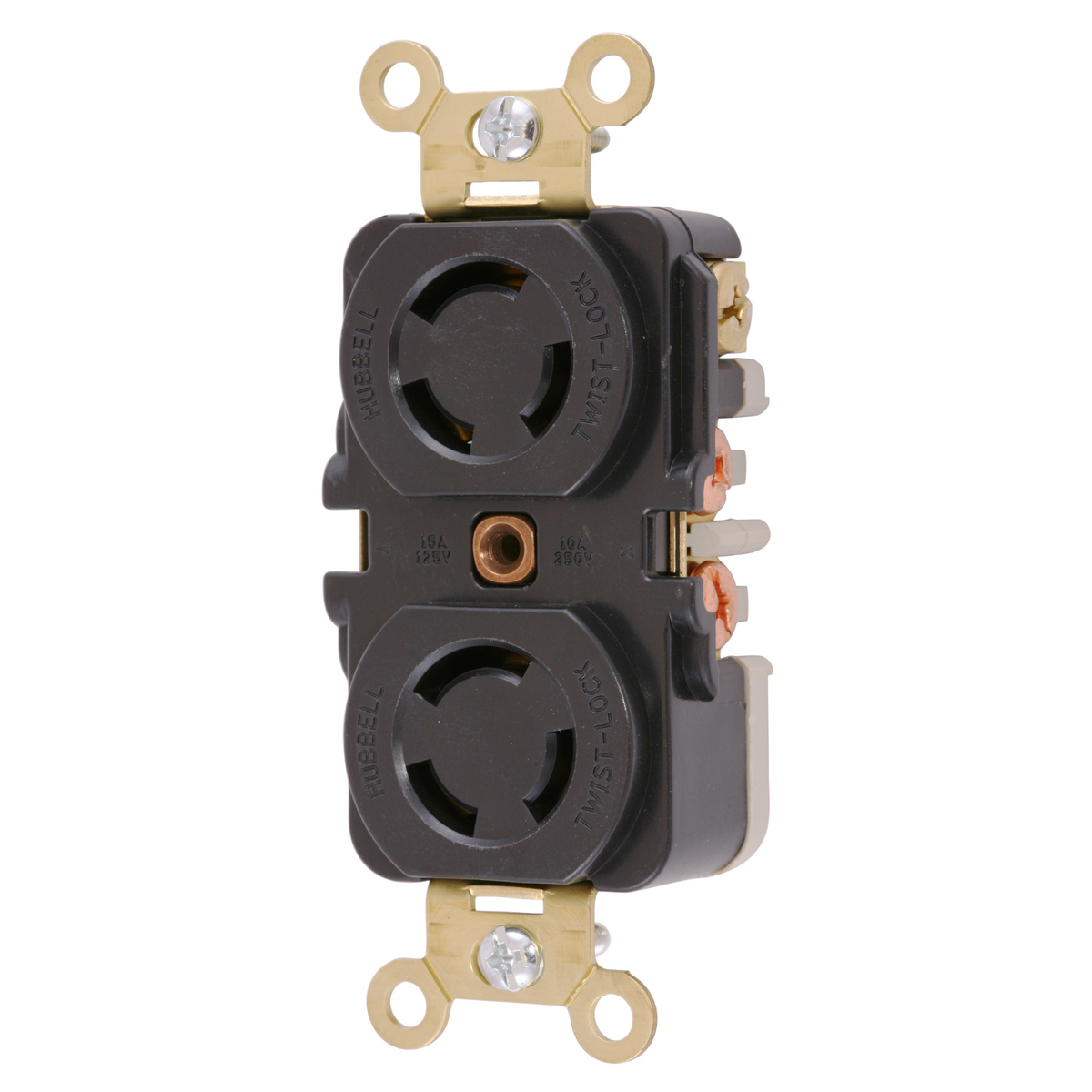

Product image for Hubbell HBL7580 10 Amp 250 VAC 3-Pole 3-Wire Non-NEMA Black Duplex Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL7580 10 Amp 250 VAC 3-Pole 3-Wire Non-NEMA Black Duplex Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7580 | Codale Part # 314470
$104.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Duplex Flush Receptacle, 10A 250/15A 125V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black RTP.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14 AWG
Current
10 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Grade
Industrial
Material
Thermoplastic
Mounting Type
Screw, Flush, Inner Lying
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single
Voltage
250/125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585002354
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358500235
Weight
0.3 lb

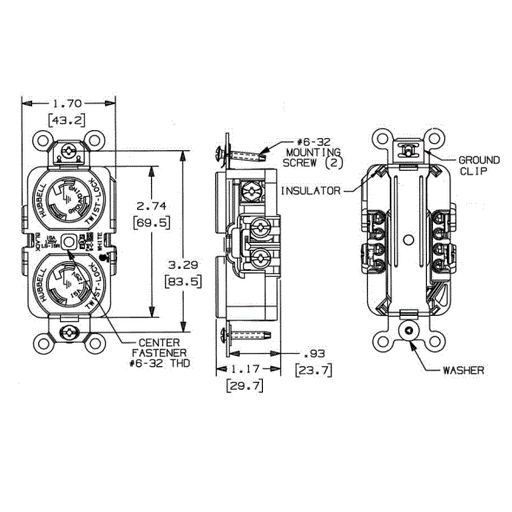

Dimensions

Height
1.17 Inch
Length
3.29 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Single point break-off tabs
  • Mounting strap tabs lock the body and base together
  • Standard
