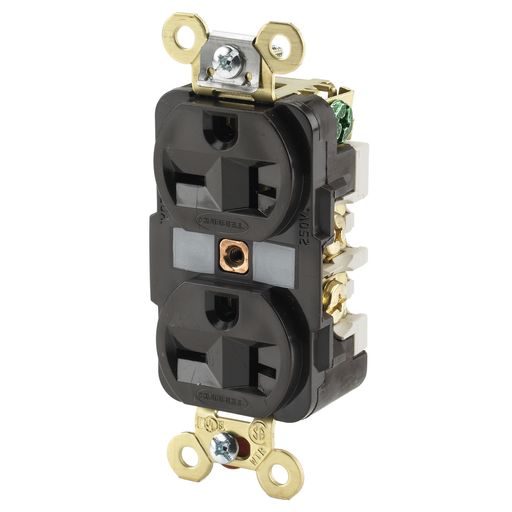

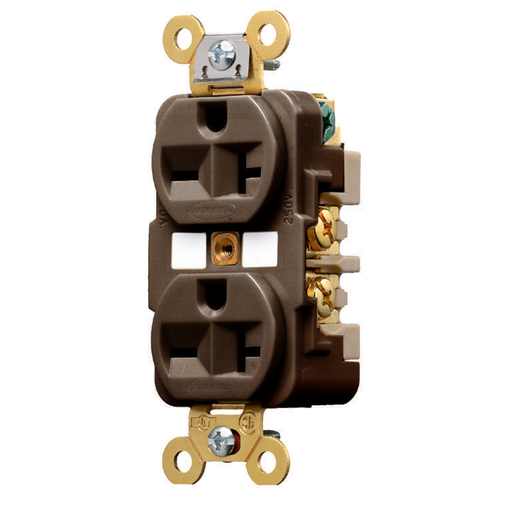

Hubbell HBL5462 20 Amp 250 Volt 2-Pole 3-Wire NEMA 6-20R Brown Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5462 | Codale Part # 314679
$23.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Brown, Single Pack

Technical Information

Amperage
20 Amp
Applications
For Conduit Bending
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
14-10 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585435480
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Extra Heavy Duty
Product UPC
78358543548
Weight
0.25 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Deep nylon body design delivers increased impact resistance
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Self Grounding
