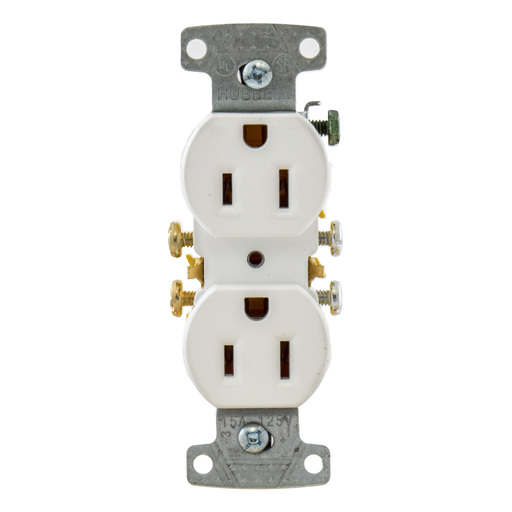

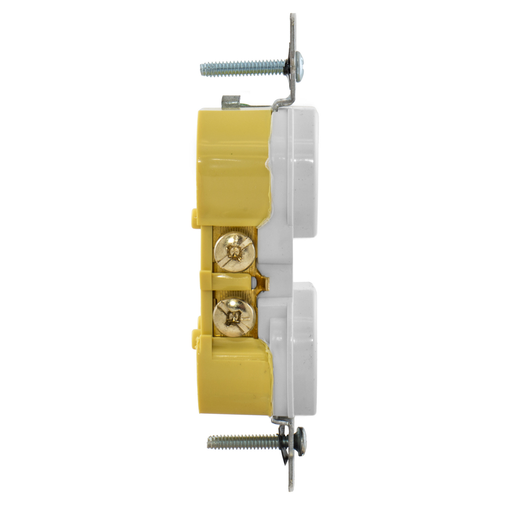

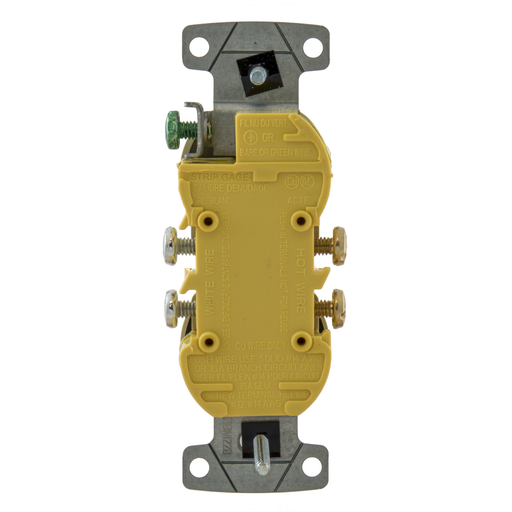

Hubbell RR15W 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RR15W | Codale Part # 3173192
$1.02/ea
ea
Log in or register to view your price, purchase history, and more!
515 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
TradeSelect, Straight Blade Devices, Receptacles, Residential Grade, Duplex, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Push Terminals, White

Technical Information

Amperage
15 Amp
Applications
Residential
Conductor Size
14-12 AWG
Connection Type
Push and Side Wire
Current
15 Amp
Grade
Residential
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Tc Connection
Push-In and Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Trade-Select Straight Blade

General Product Info

12-Digit UPC
883778100031
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
88377810003
Weight
0.1100 lb

Dimensions

Height
0.9 Inch
Length
4.2 Inch
Width
1.590 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base
  • Self Grounding
